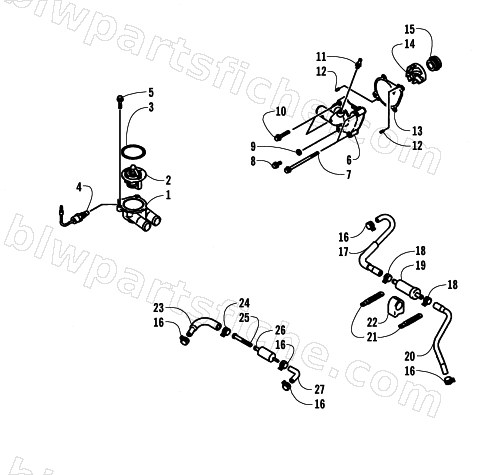

WATER PUMP/THERMOSTAT ASSEMBLY
2004 650 V-2 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3201-019 | BODY,THERMOSTAT-LOWER | 1 | $91.95 | |
| 2 | 3201-026 | THERMOSTAT | 1 | $71.95 | |
| 3 | 3201-028 | O-RING,44.7X2.4 | 1 | $12.95 | |
| 4 | 3201-021 | SWITCH,SENSOR-WATER | 1 | $151.95 | |
| 5 | 3201-036 | BOLT,FLANGED-SMALL | 1 | $6.95 | |
| 6 | 3201-177 | COVER-PUMP,WATER | 1 | $104.95 | |
| 7 | 3201-143 | BOLT-FLANGED-SMALL | 1 | $12.95 | |
| 9 | 3201-281 | WASHER,6.2X11X1 | 1 | $6.95 | |
| 10 | 3201-146 | BOLT-FLANGED-SMALL | 1 | $6.95 | |
| 11 | 3201-265 | FITTING | 1 | $32.95 | |
| 12 | 3201-241 | PIN-DOWEL,4X8 | 1 | $1.95 | |
| 13 | 3201-068 | GASKET,WATER PUMP | 1 | $12.95 | |
| 14 | 3201-244 | IMPELLER | 1 | $29.95 | |
| 15 | 3201-230 | SEAL-MECHANICAL,WATER | 1 | $32.95 | |
| 16 | 3201-448 | CLAMP | 1 | $1.95 | |
| 17 | 3201-023 | HOSE,COOLING-CARB-VALVE | 1 | $36.95 | |
| 18 | 3201-449 | CLAMP | 1 | $10.95 | |
| 19 | 3201-027 | VALVE,ASSY | 1 | $87.95 | |
| 20 | 3201-024 | HOSE,COOLING-VALVE-WATER PUMP | 1 | $20.63 | |
| 21 | 3201-033 | CLAMP | 1 | $6.95 | |
| 22 | 3201-029 | DAMPER,VALVE | 1 | $17.95 | |
| 23 | 3201-058 | HOSE,COOLING | 1 | $13.95 | |
| 24 | 3201-030 | CLAMP | 1 | $12.95 | |
| 25 | 3201-025 | FILTER,WATER | 1 | $10.95 | |
| 26 | 3201-020 | BODY, WATER FILTER | 1 | $13.95 | |
| 27 | 3201-022 | HOSE,COOLING-HEAD-FILTER | 1 | $25.95 |
