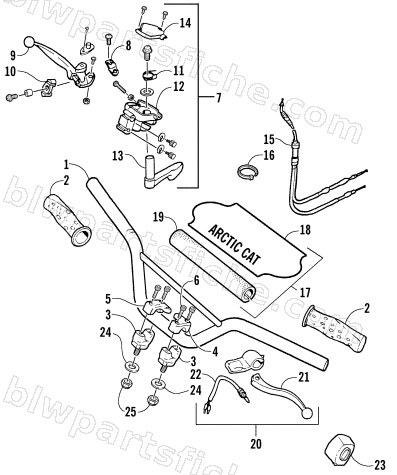

HANDLEBAR ASSEMBLY
2004 90 Y-12 YOUTH 4-STROKE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-230 | HANDLE BAR | 1 | $56.95 | |
| 2 | 3301-234 | HANDLE GRIP | 1 | $16.95 | |
| 3 | 3301-231 | HANDLE BAR BOTTOM CLAMP | 1 | $25.95 | |
| 4 | 3301-232 | LEFT HANDLE BAR CLAMP | 1 | $16.95 | |
| 5 | 3301-233 | RIGHT HANDLE BAR CLAMP | 1 | $16.95 | |
| 6 | 3301-290 | 1HEX SOCKET BOLT | 1 | $2.95 | |
| 7 | 3301-861 | RIGHT LEVER ASS'Y | 1 | $122.95 | |
| 8 | 3301-239 | THROTTLE CABLE BRACKET | 1 | $4.95 | |
| 9 | 3301-240 | RIGHT LEVER | 1 | $40.95 | |
| 10 | 3301-238 | CABLE BRACKET | 1 | $20.95 | |
| 11 | 3301-244 | THROTTE LEVER SPRING | 1 | $2.95 | |
| 12 | 3301-237 | LEVER BRACKET | 1 | $48.95 | |
| 13 | 3301-243 | THROTTLE LEVER | 1 | $35.95 | |
| 14 | 3301-236 | LEVER BODY COVER | 1 | $22.95 | |
| 15 | 3301-862 | THROTTLE CABLE | 1 | $20.95 | |
| 16 | 3301-465 | ZIP TIE | 1 | $0.85 | |
| 17 | 3301-457 | CROSS BAR SPONGE ASSY. | 1 | $20.95 | |
| 20 | 3301-242 | LEFT LEVER ASS'Y | 1 | $76.95 | |
| 21 | 3301-241 | LEFT LEVER | 1 | $35.95 | |
| 22 | 3301-153 | L.BRAKE SWITCH WIRE | 1 | $52.95 | |
| 23 | 3301-152 | L.HANDLE SWITCH ASS'Y(NO HEAD LIGHT) | 1 | $79.95 | |
| 24 | 3301-357 | PLAIN WASHER | 1 | $2.95 | |
| 25 | 3301-283 | NYLON NUT | 1 | $1.95 |
