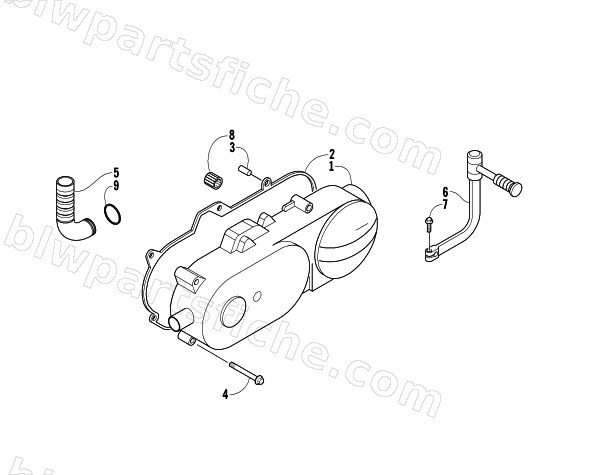

2004 Arctic Cat 90 Y-12 YOUTH 4-STROKE — LEFT CRANKCASE COVER ASSEMBLY
2004 90 Y-12 YOUTH 4-STROKE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-793 | LEFT CRANKCASE COVER | 1 | $99.95 | |
| 2 | 3301-794 | LEFT CRANKCASE COVER GASKET | 1 | $29.95 | |
| 3 | 3301-775 | DOWEL PIN | 1 | $2.95 | |
| 4 | 3301-796 | HEX WASHER FACE BOLT | 1 | $3.95 | |
| 5 | 3301-797 | LEFT CRANKCASE COVER DUCT | 1 | $21.95 | |
| 6 | 3301-798 | KICK STARTER ARM ASS'Y | 1 | $64.95 | |
| 7 | 3301-391 | HEX WASHER FACE BOLT | 1 | $2.95 | |
| 8 | 3301-418 | NEEDLE BEARING | 1 | $25.95 | |
| 9 | 3301-799 | CLIP | 1 | $3.95 |
