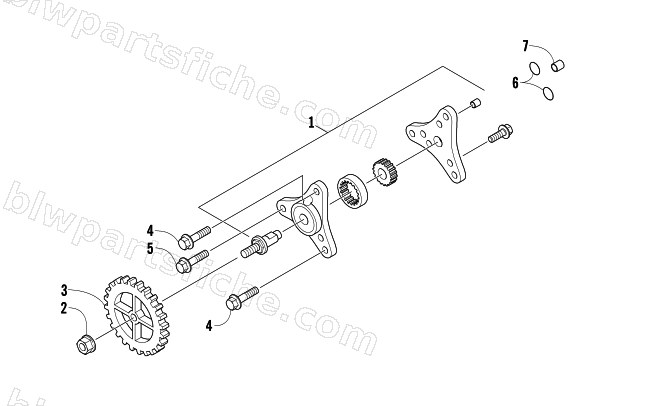

2004 Arctic Cat 90 Y-12 YOUTH 4-STROKE — OIL PUMP ASSEMBLY
2004 90 Y-12 YOUTH 4-STROKE
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 1 |
3301-711 |
OIL PUMP |
1 |
$79.95 |
|
| 2 |
3301-327 |
HEX FLANGE NUT WITH SERRATION |
1 |
$1.95 |
|
| 3 |
3301-712 |
OIL PUMP DRIVE GEAR |
1 |
$29.95 |
|
| 4 |
3301-713 |
HEX WASHER FACE BOLT |
1 |
$1.50 |
|
| 5 |
3301-622 |
HEX WASHER FACE BOLT |
1 |
$1.95 |
|
| 6 |
3301-629 |
O-RING |
1 |
$2.95 |
|
| 7 |
3301-716 |
DOWEL PIN |
1 |
$3.16 |
|
