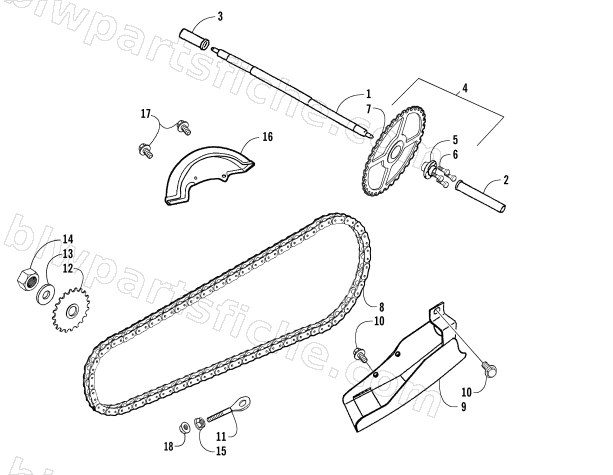

2004 Arctic Cat 90 Y-12 YOUTH 4-STROKE — REAR DRIVE ASSEMBLY
2004 90 Y-12 YOUTH 4-STROKE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-161 | REAR WHEEL AXLE | 1 | $264.95 | |
| 2 | 3301-173 | RIGHT SPACER COLLAR | 1 | $25.95 | |
| 3 | 3301-174 | LEFT SPACER COLLAR | 1 | $25.95 | |
| 4 | 3301-163 | REAR SPROCKET ASS'Y | 1 | $91.95 | |
| 5 | 3301-165 | FINAL DRIVE FLANGE | 1 | $62.95 | |
| 6 | 3301-399 | BOLT,EX WASHER FACE | 1 | $1.95 | |
| 8 | 3301-863 | DRIVE CHAIN | 1 | $76.95 | |
| 9 | 3301-155 | CHAIN PROTECT COVER | 1 | $69.95 | |
| 10 | 3301-393 | HEX WASHER FACE BOLT | 1 | $1.95 | |
| 11 | 3301-573 | DRIVE CHAIN ADJUSTER (8mm) | 1 | $6.95 | |
| 12 | 3301-864 | DRIVE SPROCKET ASS'Y | 1 | $64.95 | |
| 13 | 3301-883 | PLAIN WASHER | 1 | $1.50 | |
| 14 | 3301-884 | NYLON NUT | 1 | $3.16 | |
| 15 | 3301-524 | HEX NUT | 1 | $2.95 | |
| 16 | 3301-156 | REAR CHAIN COVER | 1 | $16.95 | |
| 17 | 3301-886 | HEX FLANGE BOLT | 1 | $2.95 | |
| 18 | 3301-330 | HEX FLANGE NUT WITH SERRATION | 1 | $1.37 |
