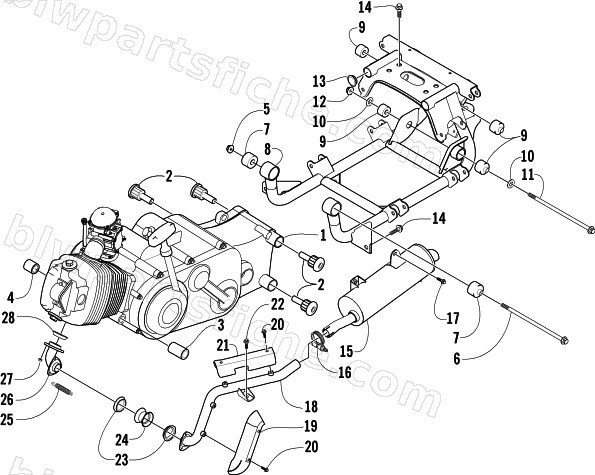

ENGINE AND RELATED PARTS
2005 250 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0462-016 | ENGINE, ASSY (FROM 0463-016) | 1 | $4,022.95 | |
| 2 | 3402-263 | BUSHING,ENG MTG,REAR | 1 | $64.95 | |
| 3 | 0402-231 | SPACER, ENG MTG-LONG | 1 | $13.95 | |
| 4 | 0402-232 | SPACER, ENG MTG-SHORT | 1 | $6.95 | |
| 5 | 1623-965 | NUT,HEX-THK NYL M12X1.25 CL8 Z&Y(DIN) | 1 | $1.50 | |
| 6 | 3423-236 | BOLT,12MM X 300MM | 1 | $17.87 | |
| 7 | 3402-264 | BUSHING,ENG MTG | 1 | $64.95 | |
| 8 | 0506-301 | SUB FRAME,MFG ASSY | 1 | $392.95 | |
| 9 | 3402-232 | BUSHING,M10, ENG MTG | 1 | $35.95 | |
| 10 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 11 | 3423-235 | BOLT,10MM X 240MM | 1 | $17.87 | |
| 12 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 13 | 0406-320 | CAP,SUBFRAME(RDR-11-1418) | 1 | $3.95 | |
| 14 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 15 | 0512-011 | MUFFLER-BLACK(NELSON 28112) | 1 | $1,018.95 | |
| 16 | 0423-092 | CLAMP,EXHAUST (NORMA ARS-M8-36) | 1 | $20.95 | |
| 17 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 18 | 0512-093 | PIPE,EXHAUST-BLACK | 1 | $215.95 | |
| 19 | 0412-023 | COVER,EXHAUST | 1 | $79.95 | |
| 20 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 21 | 0412-024 | COVER, EXHAUST - REAR | 1 | $26.95 | |
| 22 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 23 | 0612-887 | GASKET,EXHAUST - TAIL PIPE (1.275 I.D.) | 1 | $32.95 | |
| 24 | 0512-077 | COUPLER,EXHAUST-BLACK | 1 | $32.95 | |
| 25 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 26 | 0512-008 | PIPE, HEADER-BLACK | 1 | $110.95 | |
| 27 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 28 | 3402-300 | GASKET,EXH PIPE | 1 | $23.39 |
