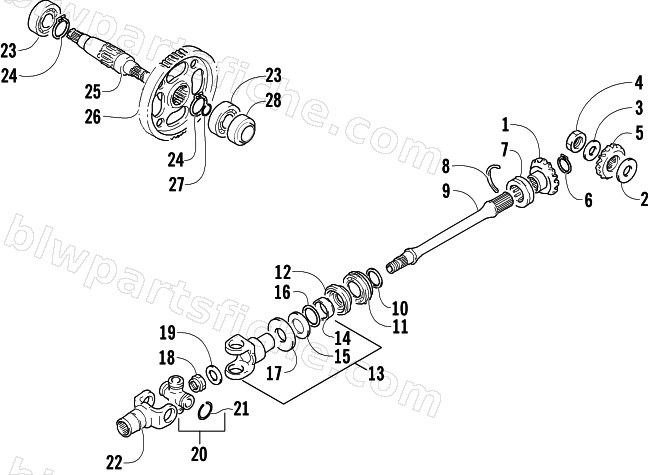

SECONDARY GEAR/OUTPUT SHAFT ASSEMBLY
2005 250 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-269 | GEAR, BEVEL | 1 | $276.95 | |
| 2 | 3423-549 | SHIM SET, SEC DRIVE BEVEL | 1 | $163.95 | |
| 3 | 3423-032 | WASHER,20MM | 1 | $4.13 | |
| 4 | 3423-254 | NUT,20MM | 1 | $3.95 | |
| 5 | 3446-270 | GEAR, BEVEL | 1 | $421.95 | |
| 6 | 3423-908 | CIRCLIP,FASTENER | 1 | $5.92 | |
| 7 | 3402-515 | BEARING, SEC DRIVEN GEAR,M (30X50X17) | 1 | $79.95 | |
| 8 | 3423-072 | C RING,M50 | 1 | $5.78 | |
| 9 | 3446-199 | SHAFT,DRIVEN | 1 | $371.95 | |
| 10 | 3402-308 | SHIM,T:0.50,25MM | 1 | $5.95 | |
| 10 | 3402-017 | SHIM,25MM | 1 | $5.92 | |
| 10 | 3402-018 | SHIM,25MM | 1 | $5.92 | |
| 10 | 3402-019 | SHIM,25MM | 1 | $5.92 | |
| 10 | 3402-020 | SHIM,25MM | 1 | $5.92 | |
| 10 | 3403-217 | SHIM,25X34X0.8 | 1 | $5.92 | |
| 10 | 3402-022 | SHIM,25MM | 1 | $5.95 | |
| 10 | 3402-023 | SHIM,25MM | 1 | $5.92 | |
| 10 | 3402-024 | SHIM,25MM | 1 | $5.92 | |
| 10 | 3423-421 | WASHER, SHIFT SHAFT (M25X34X1.0) | 1 | $5.51 | |
| 10 | 3402-028 | SHIM,25MM | 1 | $6.20 | |
| 10 | 3402-029 | SHIM,25MM | 1 | $6.47 | |
| 10 | 3402-030 | SHIM,25MM | 1 | $6.47 | |
| 10 | 3402-031 | SHIM,25MM | 1 | $6.47 | |
| 11 | 3403-210 | BEARING,REAR OUTPUT SHAFT RR | 1 | $106.95 | |
| 12 | 3402-072 | OIL SEAL ,M34X52X9 | 1 | $23.39 | |
| 13 | 3435-090 | YOKE, FR DRIVE OUTPUT & FR BEVEL GEAR | 1 | $213.95 | |
| 14 | 3435-029 | COLLAR, OUTPUT OIL SEAL | 1 | $45.95 | |
| 15 | 3435-030 | PLATE, OUTPUT YOKE OIL SEAL | 1 | $20.63 | |
| 16 | 3423-060 | O RING D:1 ID:28 | 1 | $4.40 | |
| 17 | 3423-035 | WASHER,30MM | 1 | $5.51 | |
| 18 | 3423-025 | NUT,16MM | 1 | $4.95 | |
| 19 | 3423-028 | WASHER,16MM | 1 | $5.95 | |
| 20 | 3435-011 | JOINT SET, UNIVERSAL | 1 | $38.95 | |
| 21 | 3423-067 | CIRCLIP,M25 | 1 | $3.95 | |
| 22 | 3435-002 | YOKE COMP, PROP SFT JOINT | 1 | $196.95 | |
| 23 | 3402-219 | BEARING,M25X62X17 | 1 | $58.95 | |
| 24 | 3423-321 | CIRCLIP,FASTENER | 1 | $5.37 | |
| 25 | 3446-176 | SHAFT,R FINAL DRIVEN | 1 | $316.95 | |
| 26 | 3446-175 | GEAR,R FINAL DRIVEN | 1 | $378.95 | |
| 27 | 3423-281 | RING,SNAP,M24 | 1 | $3.95 |
