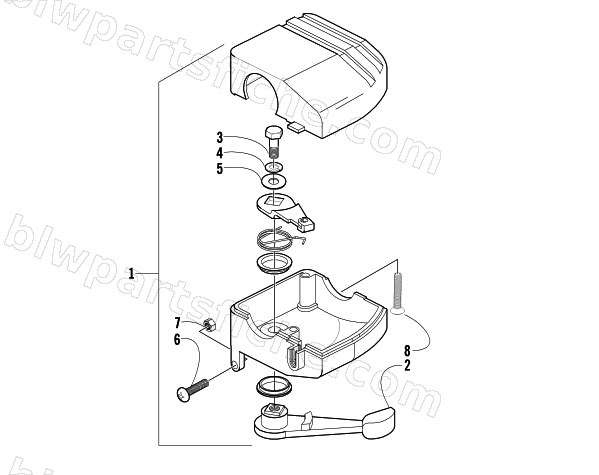

THROTTLE CASE ASSEMBLY

2005 300

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3509-003	CASE ASSY,THROTTLE	1	$196.95
2	3409-001	LEVER,THROTTLE	1	$26.95
3	3007-392	BOLT	1	$3.95
4	3004-447	WASHER, LOCK 6MM	1	$3.16
5	3003-030	WASHER, FLAT	1	$2.75
6	3423-014	SCREW,5MM	1	$2.06
7	3423-327	NUT,5MM	1	$2.33
8	3423-199	SCREW, 5X30	1	$1.78
