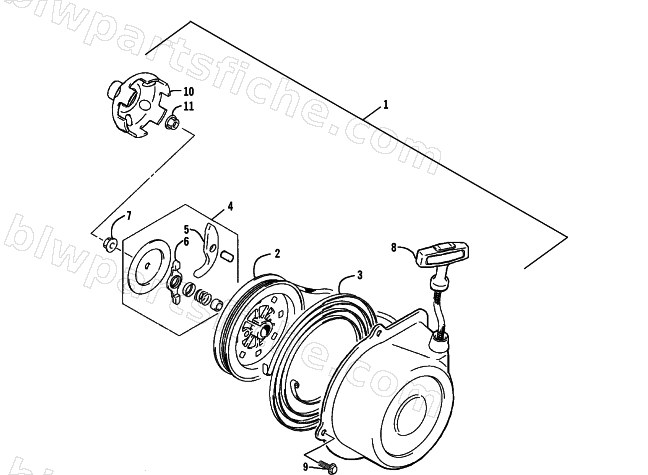

2005 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE GM — RECOIL STARTER ASSEMBLY
2005 400 AUTOMATIC TRANSMISSION 4X4 FIS LE GM
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3445-003 | STARTER ASSY, RECOIL | 1 | $316.95 | |
| 2 | 3445-004 | REEL, STARTER | 1 | $87.95 | |
| 3 | 3445-007 | SPRING, RECOIL | 1 | $69.95 | |
| 4 | 3445-016 | RATCHET SET | 1 | $29.95 | |
| 5 | 3445-005 | RATCHET SET | 1 | $20.63 | |
| 6 | 3445-006 | GUIDE, RATCHET | 1 | $6.20 | |
| 7 | 3007-373 | NUT | 1 | $3.16 | |
| 8 | 3445-011 | ROPE ASSY W GRIP,STARTER 6.0X1870 | 1 | $90.95 | |
| 9 | 3423-428 | SCREW, RECOIL STARTER | 1 | $3.30 | |
| 10 | 3445-029 | CUP,STARTER 500 ATV | 1 | $122.95 | |
| 11 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 |
