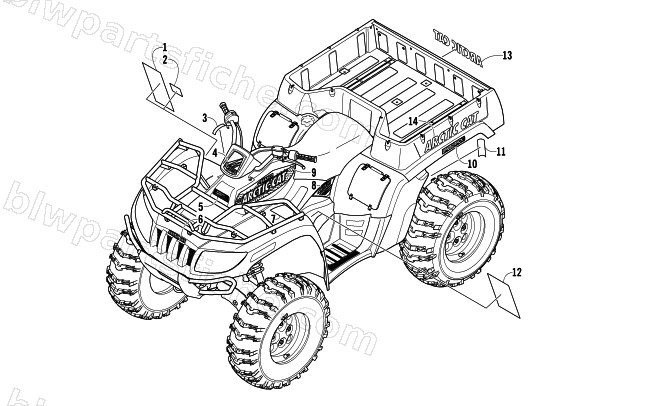

2005 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 TBX — DECALS
2005 400 AUTOMATIC TRANSMISSION 4X4 TBX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 3 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 4 | 0411-860 | DECAL,GRAPHIC-POD (400 M GREEN) | 1 | $25.95 | |
| 4 | 0411-859 | DECAL,GRAPHIC-POD (400 TBX RED) | 1 | $13.95 | |
| 5 | 0411-964 | DECAL,CREST-"SPEEDRACK" | 1 | $3.30 | |
| 6 | 0411-839 | DECAL,GRAPHIC-FRONT(MARSH GREEN) | 1 | $148.95 | |
| 6 | 0411-840 | DECAL,GRAPHIC-FRONT(RED) | 1 | $30.95 | |
| 7 | 0411-401 | DECAL, WARNING-AGE (16) | 1 | $58.95 | |
| 8 | 0411-864 | DECAL,GRAPHIC-SIDE LOWER RH (400 M GR) | 1 | $25.95 | |
| 8 | 0411-865 | DECAL,GRAPHIC-SIDE LOWER LH (400 M GRN) | 1 | $26.95 | |
| 8 | 0411-862 | DECAL,GRAPHIC-SIDE LOWER RH(400 TBX RED) | 1 | $32.95 | |
| 8 | 0411-863 | DECAL,GRAPHIC-SIDE LOWER LH(400 TBX RED) | 1 | $32.95 | |
| 9 | 0411-852 | DECAL,GRAPHIC-SIDE UPPER RH-M GREEN | 1 | $48.95 | |
| 9 | 0411-853 | DECAL,GRAPHIC-SIDE UPPER LH (M GRN) | 1 | $48.95 | |
| 9 | 0411-854 | DECAL,GRAPHIC-SIDE UPPER RH-RED | 1 | $148.95 | |
| 9 | 0411-855 | DECAL,GRAPHIC-SIDE UPPER LH-RED | 1 | $148.95 | |
| 10 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 11 | 0411-267 | DECAL,WARNING-TOWING(1050 LB) | 1 | $3.30 | |
| 12 | 0411-218 | DECAL,WARNING-GENERAL | 1 | $17.87 | |
| 13 | 0411-858 | DECAL,GRAPHIC-REAR TAILGATE (400 TBX) | 1 | $23.39 | |
| 14 | 0411-868 | DECAL,GRAPHIC-BOX SIDE (400 TBX) | 1 | $30.95 |
