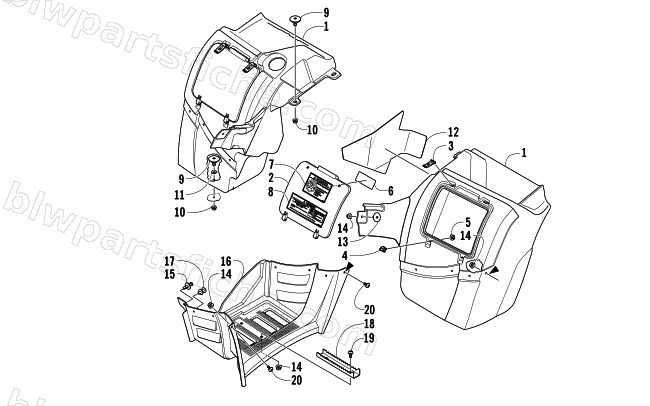

STORAGE BOX ASSEMBLY
2005 400 AUTOMATIC TRANSMISSION 4X4 TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-513 | BOX,STORAGE-ASSY-RH | 1 | $331.95 | |
| 1 | 1506-514 | BOX,STORAGE-ASSY-LH | 1 | $346.95 | |
| 2 | 1506-020 | HATCH,STORAGE BOX-ASSY | 1 | $69.95 | |
| 3 | 1406-134 | STRAP,HATCH COVER | 1 | $4.40 | |
| 4 | 0506-674 | HINGE, WELDT | 1 | $47.95 | |
| 5 | 8424-502 | NUT,HEX-FLG M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 6 | 0411-487 | DECAL,CAPACITY-SIDE CONTAINER | 1 | $12.35 | |
| 7 | 0411-435 | DECAL, WARNING-PASSENGER | 1 | $66.95 | |
| 8 | 0411-589 | DECAL,WARNING-TIRE PRESSURE | 1 | $10.97 | |
| 9 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 | |
| 10 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 12 | 0412-316 | SHIELD, HEAT-SIDE BOX | 1 | $13.95 | |
| 13 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 14 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 15 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 16 | 1406-356 | FOOTWELL,AUTO-RH | 1 | $105.95 | |
| 16 | 2406-425 | FOOTWELL,MANUAL- LH | 1 | $201.95 | |
| 17 | 0423-046 | RIVET, PLASTIC - DH - .246X.157-.394 BLK | 1 | $1.09 | |
| 18 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 19 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 20 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 |
