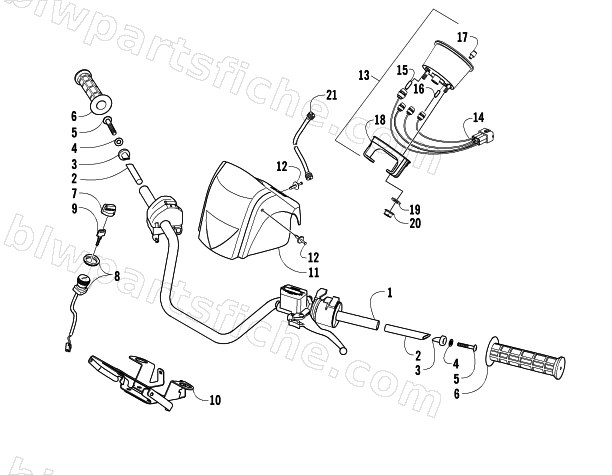

HANDLEBAR ASSEMBLY
2005 400 AUTOMATIC TRANSMISSION 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0505-418 | HANDLE BAR-BLACK | 1 | $30.95 | |
| 2 | 0405-148 | R/B 3323-054 | 1 | $18.95 | |
| 3 | 0405-149 | END,HANDLE BAR | 1 | $3.16 | |
| 4 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 5 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 6 | 0405-147 | GRIP,HANDLEBAR (EXTERNAL) | 1 | $20.63 | |
| 7 | 0409-013 | COVER,KEY | 1 | $6.34 | |
| 8 | 3430-040 | SWITCH, IGN | 1 | $187.95 | |
| 9 | 3409-007 | KEY, BLANK (C SERIES) | 1 | $30.95 | |
| 9 | 3409-011 | KEY, BLANK ( D SERIES) | 1 | $30.95 | |
| 9 | 3409-012 | KEY, BLANK (E SERIES) | 1 | $30.95 | |
| 9 | 3409-013 | KEY, BLANK (F SERIES) | 1 | $30.95 | |
| 10 | 1506-434 | MOUNT,POD-BLACK (4" RND) | 1 | $110.95 | |
| 11 | 0405-143 | POD,INSTRUMENT-MARSH GREEN (4" RND) | 1 | $97.95 | |
| 11 | 0405-144 | POD,INSTRUMENT-RED (4" RND) | 1 | $97.95 | |
| 12 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 13 | 0420-050 | SPEEDO,ROUND-4 INCH | 1 | $231.95 | |
| 14 | 0509-031 | BULB,CORD ASSY | 1 | $79.95 | |
| 15 | 0409-062 | BULB,T10 12V1.7W(WEDGE BASE) | 1 | $5.95 | |
| 16 | 0609-078 | BULB,T 6.5 WEDGE BASE-1 | 1 | $4.95 | |
| 17 | 0409-063 | KNOB | 1 | $5.92 | |
| 18 | 1506-577 | BRACKET,SPEEDOMETER-ROUND | 1 | $15.11 | |
| 19 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 20 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 21 | 0487-026 | CABLE, SPEEDOMETER | 1 | $64.95 |
