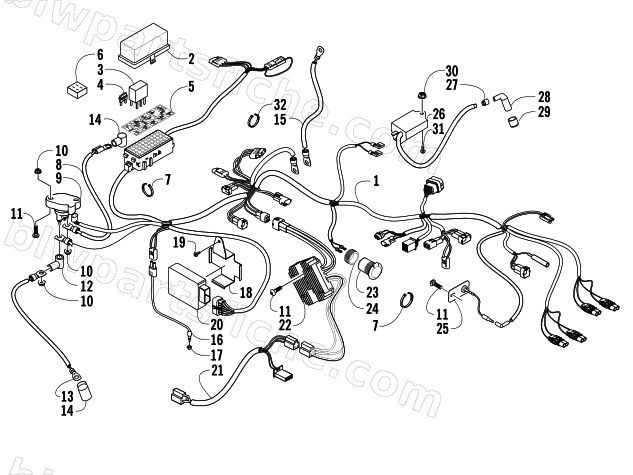

2005 Arctic Cat 400 MANUAL TRANSMISSION 4X4 FIS — WIRING HARNESS ASSEMBLY
2005 400 MANUAL TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-154 | HARNESS,MAIN-376M SE | 1 | $901.95 | |
| 2 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 3 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 4 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 4 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 4 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 5 | 0411-837 | DECAL,POWER DISTRIBUTION MODULE | 1 | $10.97 | |
| 6 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 7 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 8 | 0445-042 | CABLE,SOLENOID/STARTER (RED) | 1 | $24.95 | |
| 9 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 10 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 13 | 0445-052 | CABLE,BATTERY-RELAY | 1 | $24.95 | |
| 14 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 15 | 0445-037 | CABLE,BATTERY/CHASSIS | 1 | $29.95 | |
| 16 | 0409-009 | SWITCH,BRAKE-ASSY | 1 | $82.95 | |
| 17 | 0402-991 | RETAINER,BRAKE SWITCH | 1 | $6.75 | |
| 18 | 0506-985 | BRACKET, CDI - BLACK | 1 | $15.11 | |
| 19 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 20 | 3402-785 | CDI UNIT | 1 | $865.95 | |
| 21 | 0486-148 | HARNESS,ADAPTOR-ELECTRIC CHOKE | 1 | $36.95 | |
| 22 | 3402-682 | RECTIFIER-ASSY | 1 | $454.95 | |
| 23 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 24 | 0445-034 | NUT, RETAINER-12V ACC PLUG | 1 | $0.40 | |
| 25 | 0530-125 | KIT,FAN DIODE | 1 | $17.87 | |
| 26 | 3430-055 | COIL ASSY, IGNITION | 1 | $180.95 | |
| 27 | 3430-009 | SEAL, HIGH TENSION CORD | 1 | $10.97 | |
| 28 | 3430-007 | CAP ASSY, SPARK PLUG | 1 | $23.39 | |
| 29 | 3430-008 | SEAL SPARK PLUG | 1 | $12.35 | |
| 30 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 31 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 32 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
