2005 Arctic Cat 400 MANUAL TRANSMISSION 4X4 VP — ENGINE AND EXHAUST

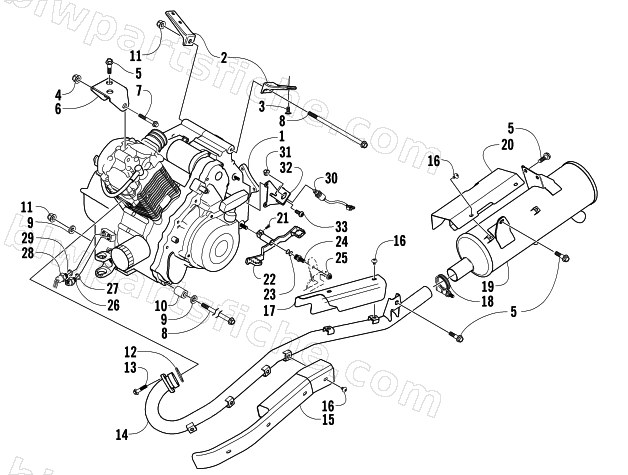

2005 400 MANUAL TRANSMISSION 4X4 VP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0462-037 | ENGINE ASSY (400FK2 FROM 0463-037) | 1 | $4,102.95 | |
| 2 | 0506-983 | BRACKET,MOTOR MTG- RH-BLACK | 1 | $20.95 | |
| 2 | 0506-984 | BRACKET, MOTOR MTG-LH-BLACK | 1 | $20.95 | |
| 3 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 4 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 5 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 6 | 0506-631 | BRKT, ENGINE MTG-UPPER-BLACK | 1 | $20.63 | |
| 7 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 8 | 0423-405 | SCREW,CAP-HFH M10X1.25X215 CL10.9 Z&Y | 1 | $6.34 | |
| 9 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 10 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 11 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 12 | 0412-007 | SEAL,EXHAUST PIPE | 1 | $17.87 | |
| 13 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 14 | 0512-212 | PIPE,EXHAUST-BLACK | 1 | $196.95 | |
| 15 | 0412-220 | SHIELD,EXHAUST PIPE | 1 | $37.95 | |
| 16 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 17 | 0412-224 | COVER,EXHAUST PIPE-MIDDLE | 1 | $42.95 | |
| 18 | 0423-150 | CLAMP,EXHAUST (NORMA ARS-M8-39.5) | 1 | $27.95 | |
| 19 | 0412-182 | MUFFLER-BLACK | 1 | $638.95 | |
| 20 | 1406-023 | COVER, MUFFLER | 1 | $46.95 | |
| 21 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 22 | 0502-354 | LEVER,FOOTSHIFT-BLACK | 1 | $47.95 | |
| 23 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 24 | 0402-994 | PIN,PIVOT-FOOTSHIFTER | 1 | $69.95 | |
| 25 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 26 | 3530-037 | SWITCH, OIL LAMP | 1 | $196.95 | |
| 27 | 3402-556 | GASKET, OIL LAMP SWITCH | 1 | $12.35 | |
| 28 | 3430-033 | SWITCH, COOL FAN | 1 | $268.95 | |
| 29 | 3402-013 | GASKET, M16X22X2 | 1 | $3.16 | |
| 30 | 0409-008 | REVERSE SWITCH | 1 | $56.95 | |
| 31 | 0402-991 | RETAINER,BRAKE SWITCH | 1 | $6.75 | |
| 32 | 1506-449 | BRACKET,REVERSE SWITCH-ASSY | 1 | $31.95 | |
| 33 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 |
