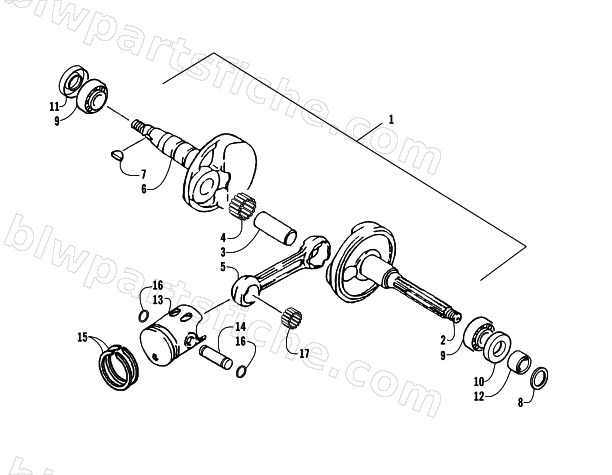

2005 Arctic Cat 50 Y-6 YOUTH — CRANKSHAFT AND PISTON ASSEMBLY
2005 50 Y-6 YOUTH
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-537 | CRANKSHAFT ASS'Y | 1 | $228.95 | |
| 2 | 3301-545 | LEFT CRANK | 1 | $90.95 | |
| 3 | 3301-546 | CRANK PIN | 1 | $26.95 | |
| 4 | 3301-526 | NEEDLE BEARING | 1 | $42.95 | |
| 5 | 3301-608 | CRANK CONNECTING ROD | 1 | $62.95 | |
| 6 | 3301-543 | RIGHT CRANK | 1 | $90.95 | |
| 7 | 3301-285 | SEMICYCLE KEY | 1 | $3.95 | |
| 8 | 3301-584 | PLAIN WASHER | 1 | $1.50 | |
| 9 | 3301-415 | RADIAL BALL BEARING | 1 | $29.95 | |
| 10 | 3301-438 | OIL SEAL | 1 | $5.95 | |
| 11 | 3301-437 | OIL SEAL | 1 | $5.95 | |
| 12 | 3301-544 | LEFT CRANK COLLAR | 1 | $5.95 | |
| 13 | 3301-539 | PISTON | 1 | $64.95 | |
| 14 | 3301-540 | PISTON PIN | 1 | $13.95 | |
| 15 | 3301-538 | PISTON RING SET | 1 | $48.95 | |
| 16 | 3301-541 | PISTON PIN CLIP | 1 | $1.95 | |
| 17 | 3301-525 | NEEDLE BEARING | 1 | $22.95 |
