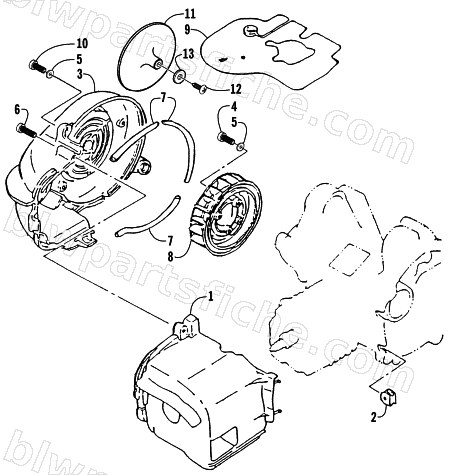

FAN AND AIR SHROUD ASSEMBLY
2005 50 Y-6 YOUTH
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-591 | CYLINDER AIR SHROUD | 1 | $21.95 | |
| 2 | 3301-268 | GROMMET | 1 | $2.95 | |
| 3 | 3301-094 | GENERATOR COVER | 1 | $22.95 | |
| 4 | 3301-288 | HEX SOCKET BOLT | 1 | $2.95 | |
| 5 | 3301-336 | PLAIN WASHER | 1 | $0.95 | |
| 6 | 3301-324 | TAPPING SCREW TRUSS HEAD PHILLIPS | 1 | $1.95 | |
| 7 | 3301-082 | DAMPER | 1 | $2.95 | |
| 8 | 3301-093 | FAN | 1 | $22.95 | |
| 9 | 3301-247 | DEFLECTOR | 1 | $10.95 | |
| 10 | 3301-289 | HEX SOCKET BOLT | 1 | $2.95 | |
| 11 | 3301-095 | GENERATOR OUTER COVER | 1 | $17.95 | |
| 12 | 3301-322 | TAPPING SCREW TRUSS HEAD PHILLIPS | 1 | $1.95 | |
| 13 | 3301-339 | PLAIN WASHER | 1 | $0.95 |
