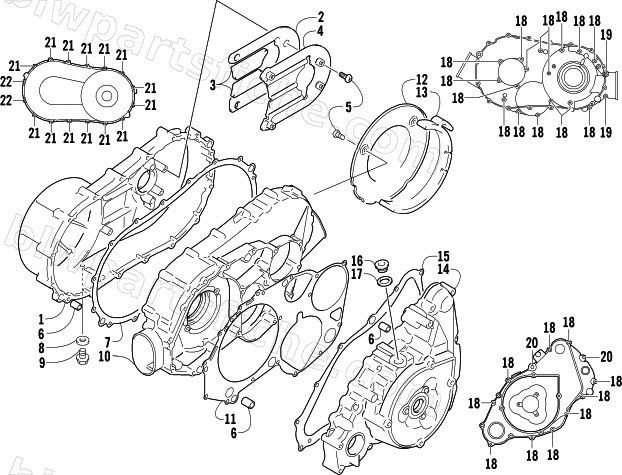

2005 Arctic Cat 500 AUTOMATIC TRANSMISSION 4X4 FIS LE — CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY
2005 500 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-710 | COVER, V BELT | 1 | $670.95 | |
| 2 | 3402-711 | DAMPER, V BELT COVER NO. 1 | 1 | $58.95 | |
| 3 | 3402-712 | DAMPER, V BELT COVER NO. 2 | 1 | $30.95 | |
| 4 | 3402-713 | PLATE, V BELT COVER | 1 | $32.95 | |
| 5 | 3423-435 | SCREW | 1 | $3.02 | |
| 6 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 7 | 3402-443 | GASKET, V-BELT COVER | 1 | $94.95 | |
| 8 | 3402-444 | GASKET | 1 | $6.06 | |
| 9 | 3007-407 | BOLT,GROUND | 1 | $3.16 | |
| 10 | 3402-709 | COVER, CLUTCH | 1 | $650.95 | |
| 11 | 3402-441 | GASKET, CLUTCH COVER | 1 | $58.95 | |
| 12 | 3402-445 | PLATE, AIR INTAKE | 1 | $37.95 | |
| 13 | 3402-699 | CUSHION, AIR INTAKE PLATE | 1 | $58.95 | |
| 14 | 3402-714 | COVER, MAGNETO | 1 | $494.95 | |
| 15 | 3402-715 | GASKET | 1 | $33.95 | |
| 16 | 3403-236 | PLUG 16MM | 1 | $15.11 | |
| 17 | 3402-013 | GASKET, M16X22X2 | 1 | $3.16 | |
| 18 | 3007-496 | BOLT,CYL HEAD | 1 | $3.16 | |
| 19 | 3423-909 | BOLT,CRANK M6X70 | 1 | $4.13 | |
| 20 | 3007-369 | BOLT,CYLINDER HEAD COVER NO. 1 | 1 | $3.16 | |
| 21 | 3423-878 | BOLT,CRANKCASE-M6X45 | 1 | $3.30 | |
| 22 | 3007-370 | BOLT,CYLINDER HEAD COVER NO. 2 | 1 | $3.95 |
