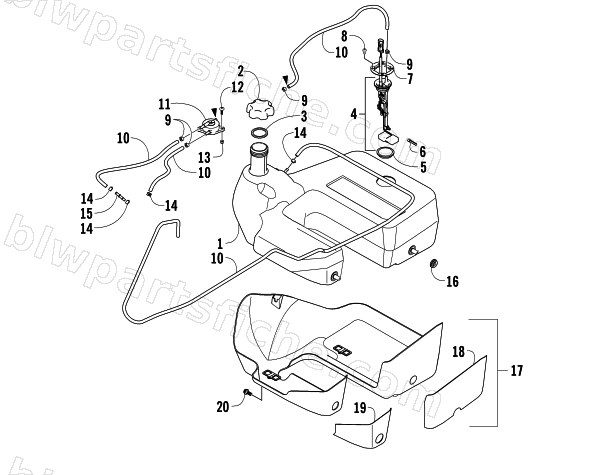

2005 Arctic Cat 500 AUTOMATIC TRANSMISSION 4X4 FIS LE — GAS TANK ASSEMBLY
2005 500 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0437-042 | KIT,FUEL TANK REPLACEMENT-500 | 1 | $213.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 3 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 4 | 0570-251 | SENDER,FUEL LEVEL-KIT | 1 | $150.95 | |
| 5 | 0470-521 | SEAL, FUEL LEVEL SENDER | 1 | $3.16 | |
| 6 | 0470-475 | FILTER, FUEL | 1 | $16.49 | |
| 7 | 0470-639 | MOUNT,FUEL LEVEL SENDER | 1 | $4.82 | |
| 8 | 1623-158 | SCREW,PLASTITE-TSPNH 1/4-10X.500 Z&BLK | 1 | $0.95 | |
| 9 | 1623-042 | CLAMP, 10 MM | 1 | $1.09 | |
| 10 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 11 | 0470-758 | PUMP,FUEL | 1 | $69.95 | |
| 12 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 13 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 14 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 15 | 0470-702 | HOSE BARB,INTAKE MANIFOLD | 1 | $2.88 | |
| 16 | 0423-460 | GROMMET, FUEL TANK | 1 | $4.26 | |
| 17 | 0570-081 | SHIELD,FUEL TANK-ASSEMBLY | 1 | $126.95 | |
| 18 | 0470-499 | SHIELD,HEAT | 1 | $54.95 | |
| 19 | 0470-498 | SHIELD,HEAT | 1 | $33.95 | |
| 20 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 |
