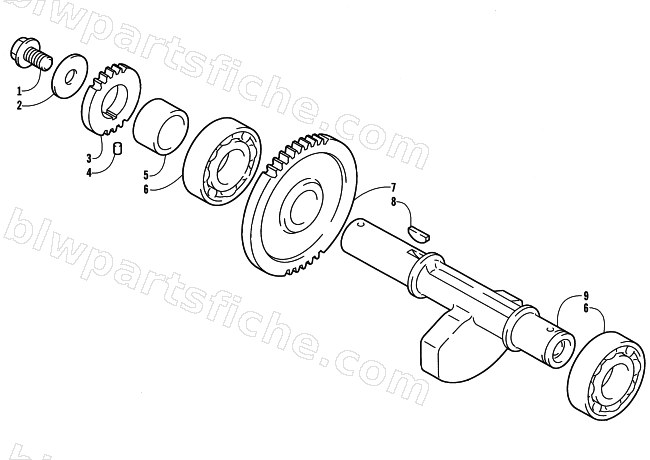

CRANK BALANCER ASSEMBLY
2005 500 AUTOMATIC TRANSMISSION 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3423-555 | BOLT, DRIVE GEAR | 1 | $4.95 | |
| 2 | 3423-401 | WASHER, DRIVE GEAR | 1 | $4.95 | |
| 3 | 3402-390 | GEAR,OIL PUMP DRIVE | 1 | $79.95 | |
| 4 | 3423-110 | PIN, DECOMP HOLDER | 1 | $3.57 | |
| 5 | 3402-461 | SPACER-DRIVE GEAR | 1 | $26.95 | |
| 6 | 3402-050 | BEARING, M22X56X16 | 1 | $139.95 | |
| 7 | 3402-722 | GEAR, DRIVEN NO.1 | 1 | $205.95 | |
| 8 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 9 | 3402-458 | BALANCER, CRANK | 1 | $205.95 |
