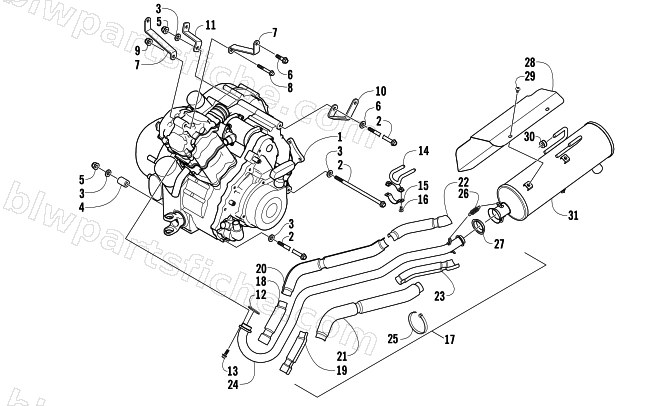

2005 Arctic Cat 500 AUTOMATIC TRANSMISSION 4X4 TBX — ENGINE AND EXHAUST
2005 500 AUTOMATIC TRANSMISSION 4X4 TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0462-029 | ENGINE-ASSY 500 AUTO (W/ELEC SPEEDO) | 1 | $4,892.95 | |
| 2 | 0423-405 | SCREW,CAP-HFH M10X1.25X215 CL10.9 Z&Y | 1 | $6.34 | |
| 3 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 4 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 5 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 6 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 1506-632 | BRACKET,ENGINE MOUNT-RH (PAINTED BLACK) | 1 | $34.95 | |
| 7 | 1506-633 | BRACKET,ENGINE MOUNT-LH (PAINTED BLACK) | 1 | $31.95 | |
| 8 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 9 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 10 | 1506-553 | BRACKET,ENGINE MOUNT-BLACK | 1 | $26.95 | |
| 11 | 1506-203 | BRACKET, ENGINE MOUNT - RH BLACK (500A) | 1 | $20.63 | |
| 12 | 0412-007 | SEAL,EXHAUST PIPE | 1 | $17.87 | |
| 13 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 14 | 0512-200 | HANGER,PIPE-EXHAUST-BLACK | 1 | $49.95 | |
| 15 | 0412-288 | BRACKET,PIPE-BLACK | 1 | $13.73 | |
| 16 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 17 | 0512-387 | PIPE,EXHAUST-ASSEMBLY | 1 | $505.95 | |
| 18 | 0412-260 | SHIELD,EXHAUST-FRONT OUTER | 1 | $34.95 | |
| 19 | 0412-259 | SHIELD,EXHAUST-FRONT INNER | 1 | $37.95 | |
| 20 | 0412-284 | SHIELD,EXHAUST | 1 | $141.95 | |
| 21 | 0412-285 | SHIELD,EXHAUST | 1 | $32.95 | |
| 22 | 0412-282 | SHIELD,EXHAUST | 1 | $30.95 | |
| 23 | 0412-283 | SHIELD,EXHAUST | 1 | $30.95 | |
| 24 | 0512-386 | PIPE,EXHAUST-BLACK | 1 | $156.95 | |
| 25 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 26 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 27 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 28 | 0412-218 | COVER,MUFFLER | 1 | $71.95 | |
| 29 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 30 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 31 | 0512-195 | MUFFLER,BLACK | 1 | $737.95 |
