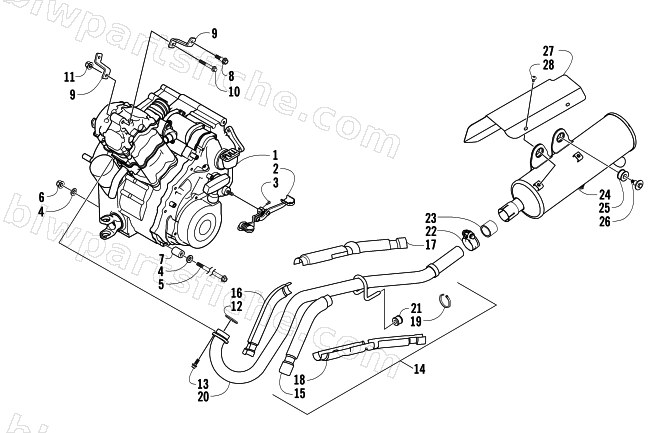

2005 Arctic Cat 500 MANUAL TRANSMISSION 4X4 FIS — ENGINE AND EXHAUST
2005 500 MANUAL TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0462-031 | ENGINE-ASSY 500M 4X (W/ELEC SPEEDO) | 1 | $5,971.95 | |
| 2 | 0502-694 | SHIFTER,HEEL TOE-ASSEMBLY | 1 | $87.95 | |
| 3 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 4 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 5 | 0423-405 | SCREW,CAP-HFH M10X1.25X215 CL10.9 Z&Y | 1 | $6.34 | |
| 6 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 7 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 8 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 9 | 1506-625 | BRACKET,ENGINE MOUNT-LH (PAINTED BLACK) | 1 | $20.95 | |
| 9 | 1506-626 | BRACKET,ENGINE MOUNT-RH (PAINTED BLACK) | 1 | $21.95 | |
| 10 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 11 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 12 | 0412-007 | SEAL,EXHAUST PIPE | 1 | $17.87 | |
| 13 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 14 | 0512-383 | PIPE,EXHAUST-ASSEMBLY | 1 | $695.95 | |
| 15 | 0412-266 | SHIELD,EXHAUST-FRONT OUTER | 1 | $100.95 | |
| 16 | 0412-265 | SHIELD,EXHAUST-FRONT INNER | 1 | $100.95 | |
| 17 | 0412-264 | SHIELD,EXHAUST-REAR OUTER | 1 | $66.95 | |
| 18 | 0412-263 | SHIELD,EXHAUST-REAR INNER | 1 | $66.95 | |
| 19 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 20 | 0512-382 | PIPE,EXHAUST-BLACK | 1 | $183.95 | |
| 21 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 22 | 0512-209 | CLAMP,EXHAUST-ASSEMBLY | 1 | $69.95 | |
| 23 | 0412-183 | SEAL,MUFFLER | 1 | $39.95 | |
| 24 | 0512-180 | MUFFLER - PAINTED | 1 | $577.95 | |
| 25 | 0412-253 | BUSHING,MUFFLER | 1 | $2.95 | |
| 26 | 0423-476 | SCREW, SHOULDER | 1 | $3.44 | |
| 27 | 0412-242 | COVER,MUFFLER | 1 | $35.95 | |
| 28 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 |
