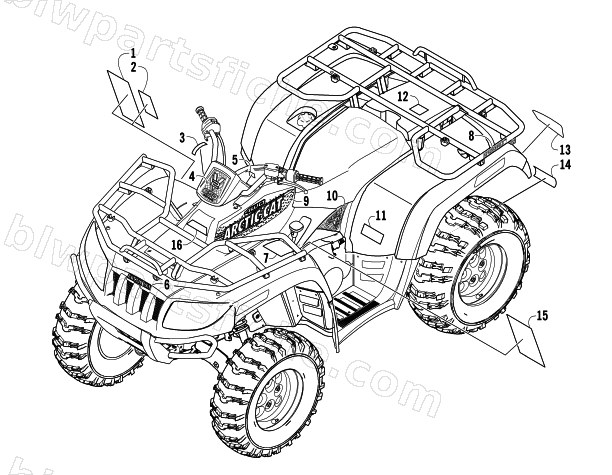

2005 Arctic Cat 650 V-2 4X4 FIS CA — DECALS
2005 650 V-2 4X4 FIS CA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0411-008 | DECAL,WARNING-RVS/PRE RIDE | 1 | $58.95 | |
| 2 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 3 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 4 | 0411-849 | DECAL,GRAPHIC-POD(650 V2 MARSH GREEN) | 1 | $15.95 | |
| 4 | 0411-850 | DECAL,GRAPHIC-POD(650 V2 RED) | 1 | $17.87 | |
| 4 | 0411-851 | DECAL,GRAPHIC-POD(650 V2 LIME GREEN) | 1 | $90.95 | |
| 5 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 6 | 0411-839 | DECAL,GRAPHIC-FRONT(MARSH GREEN) | 1 | $148.95 | |
| 6 | 0411-840 | DECAL,GRAPHIC-FRONT(RED) | 1 | $30.95 | |
| 6 | 0411-841 | DECAL,GRAPHIC-FRONT(LIME GREEN) | 1 | $10.97 | |
| 7 | 0411-401 | DECAL, WARNING-AGE (16) | 1 | $58.95 | |
| 8 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 9 | 0411-852 | DECAL,GRAPHIC-SIDE UPPER RH-M GREEN | 1 | $48.95 | |
| 9 | 0411-853 | DECAL,GRAPHIC-SIDE UPPER LH (M GRN) | 1 | $48.95 | |
| 9 | 0411-854 | DECAL,GRAPHIC-SIDE UPPER RH-RED | 1 | $148.95 | |
| 9 | 0411-855 | DECAL,GRAPHIC-SIDE UPPER LH-RED | 1 | $148.95 | |
| 9 | 0411-856 | DECAL,GRAPHIC-SIDE UPPER RH-L GREEN | 1 | $267.95 | |
| 9 | 0411-857 | DECAL,GRAPHIC-SIDE UPPER LH-L GREEN | 1 | $47.95 | |
| 10 | 0411-882 | DECAL,GRAPHIC-SIDE LWR RH(650 V2 M GRN) | 1 | $16.49 | |
| 10 | 0411-883 | DECAL,GRAPHIC-SIDE LWR LH(650 V2 M GRN) | 1 | $16.49 | |
| 10 | 0411-884 | DECAL,GRAPHIC-SIDE LWR RH(650 V2 RED) | 1 | $16.49 | |
| 10 | 0411-885 | DECAL,GRAPHIC-SIDE LWR LH(650 V2 RED) | 1 | $16.49 | |
| 10 | 0411-886 | DECAL,GRAPHIC-SIDE LWR RH(650 V2 L GRN) | 1 | $17.87 | |
| 10 | 0411-887 | DECAL,GRAPHIC-SIDE LWR LH(650 V2 L GRN) | 1 | $17.87 | |
| 11 | 0411-430 | DECAL, TIRE PRESSURE | 1 | $3.30 | |
| 12 | 0411-435 | DECAL, WARNING-PASSENGER | 1 | $66.95 | |
| 13 | 0411-888 | DECAL,GRAPHIC-REAR RH(MARSH GREEN) | 1 | $13.73 | |
| 13 | 0411-889 | DECAL,GRAPHIC-REAR LH(MARSH GREEN) | 1 | $13.73 | |
| 13 | 0411-890 | DECAL,GRAPHIC-REAR RH(RED) | 1 | $16.49 | |
| 13 | 0411-891 | DECAL,GRAPHIC-REAR LH(RED) | 1 | $16.49 | |
| 13 | 0411-892 | DECAL,GRAPHIC-REAR RH(L GREEN) | 1 | $16.49 | |
| 13 | 0411-893 | DECAL,GRAPHIC-REAR LH(L GREEN) | 1 | $16.49 | |
| 14 | 0411-267 | DECAL,WARNING-TOWING(1050 LB) | 1 | $3.30 | |
| 15 | 0411-218 | DECAL,WARNING-GENERAL | 1 | $17.87 | |
| 16 | 0411-964 | DECAL,CREST-"SPEEDRACK" | 1 | $3.30 |
