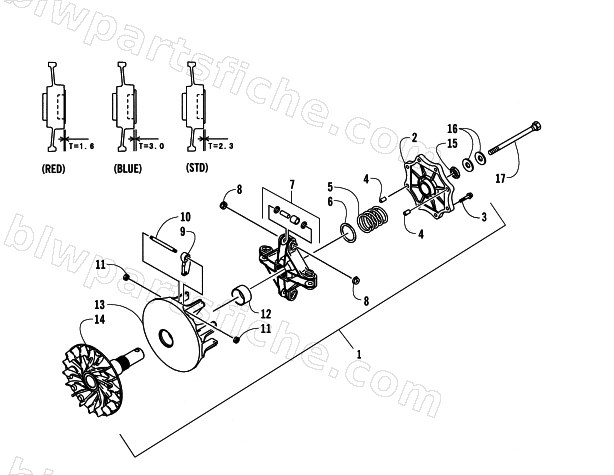

DRIVE CLUTCH
2005 650 V-2 4X4 FIS CA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3201-472 | COVERTER ASSY | 1 | $1,645.95 | |
| 2 | 3201-462 | COVER,COMP-STD | 1 | $267.95 | |
| 2 | 3201-162 | COVER-COMP,RED | 1 | $151.95 | |
| 2 | 3201-163 | COVER-COMP,BLUE (R/B 3201-471) | 1 | $137.95 | |
| 3 | 3201-112 | BOLT-FLANGED | 1 | $3.95 | |
| 4 | 3201-304 | PIN,6.2X8X14 | 1 | $1.95 | |
| 5 | 3201-360 | SPRING | 1 | $25.95 | |
| 6 | 3201-291 | SPACER,39X49.5X1.0 | 1 | $13.95 | |
| 7 | 3201-229 | SPIDER | 1 | $190.95 | |
| 8 | 3201-222 | SHOE,T=7.4 | 1 | $25.95 | |
| 8 | 3201-220 | SHOE,T=7.2 | 1 | $25.95 | |
| 8 | 3201-221 | SHOE,T=7.3 | 1 | $25.95 | |
| 8 | 3201-223 | SHOE,T=7.5 | 1 | $25.95 | |
| 8 | 3201-224 | SHOE,T=7.6 | 1 | $28.95 | |
| 8 | 3201-225 | SHOE,T=7.7 | 1 | $25.95 | |
| 8 | 3201-226 | SHOE,T=7.8 | 1 | $25.95 | |
| 8 | 3201-227 | SHOE,T=7.9 | 1 | $25.95 | |
| 8 | 3201-228 | SHOE,T=8.0 | 1 | $25.95 | |
| 9 | 3201-203 | WEIGHT-RAMP | 1 | $67.95 | |
| 10 | 3201-306 | PIN | 1 | $20.95 | |
| 11 | 3201-276 | NUT,LOCK,6MM | 1 | $4.95 | |
| 12 | 3201-296 | BUSHING | 1 | $20.95 | |
| 13 | 3201-245 | SHEAVE-MOVABLE | 1 | $314.95 | |
| 14 | 3201-248 | SHEAVE-COMP | 1 | $432.95 | |
| 15 | 3201-402 | WASHER | 1 | $16.95 | |
| 16 | 3201-399 | WASHER,SPRING | 1 | $6.95 | |
| 17 | 3201-370 | BOLT | 1 | $32.95 |
