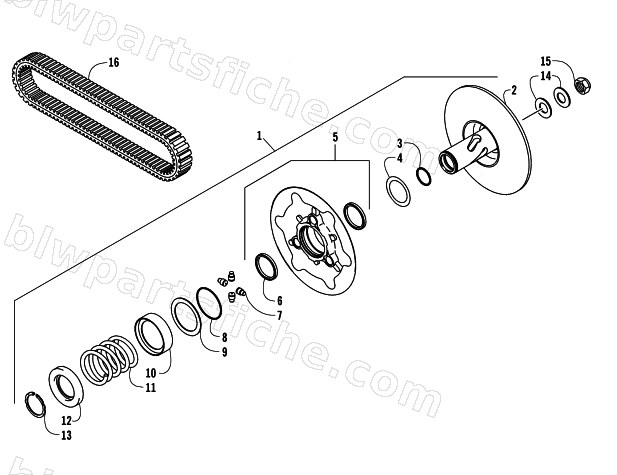

2005 Arctic Cat 650 V-2 4X4 FIS LE CA — DRIVEN CLUTCH
2005 650 V-2 4X4 FIS LE CA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3201-237 | CONVERTER-ASSY-DRIVEN | 1 | $831.95 | |
| 2 | 3201-246 | SHEAVE-COMP,FIXED | 1 | $432.95 | |
| 3 | 3201-260 | O RING | 1 | $10.95 | |
| 4 | 3201-284 | SPACER,T=1.00 | 1 | $13.95 | |
| 4 | 3201-282 | SPACER,T=0.3 | 1 | $13.95 | |
| 4 | 3201-286 | SPACER,T=0.60 | 1 | $13.95 | |
| 4 | 3201-287 | SPACER,T=1.40 | 1 | $13.95 | |
| 4 | 3201-292 | SPACER,T=0.8 | 1 | $13.95 | |
| 5 | 3201-247 | SHEAVE-COMP,MOVABLE | 1 | $432.95 | |
| 7 | 3201-358 | ROLLER | 1 | $12.95 | |
| 8 | 3201-261 | O RING | 1 | $10.95 | |
| 9 | 3201-232 | PLATE-THRUST | 1 | $48.95 | |
| 10 | 3201-171 | SEAT-SPRING,SHEAVE MOVABLE | 1 | $25.95 | |
| 11 | 3201-365 | SPRING,YELLOW | 1 | $45.95 | |
| 12 | 3201-170 | SEAT-SPRING | 1 | $16.95 | |
| 13 | 3201-300 | RING-SNAP | 1 | $10.95 | |
| 14 | 3201-400 | WASHER | 1 | $10.95 | |
| 15 | 3201-404 | NUT,18 | 1 | $16.95 | |
| 16 | 0823-364 | BELT,DRIVE | 1 | $216.95 |
