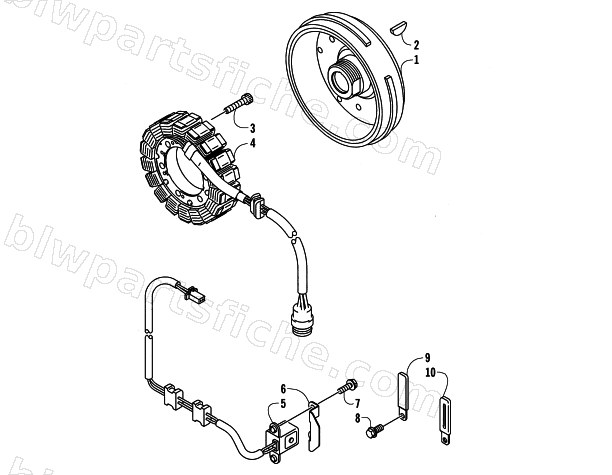

MAGNETO

2005 650 V-2 4X4 FIS LE

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3201-183	ROTOR	1	$793.95
2	3201-240	KEY-WOODRUFF	1	$4.95
3	3201-095	BOLT-SOCKET,6X28	1	$10.95
4	3201-182	STATOR	1	$707.95
5	3201-243	COIL-PULSING	1	$135.95
6	3201-138	PLATE	1	$3.95
7	3201-111	BOLT-FLANGED	1	$1.95
9	3201-382	CLAMP	1	$3.57
10	3201-033	CLAMP	1	$6.95
