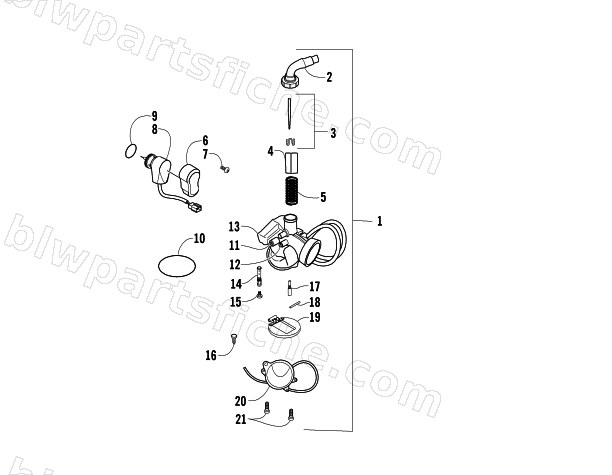

CARBURETOR ASSEMBLY
2005 90 Y-12 YOUTH
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-888 | CARBURETOR ASS'Y ( ) | 1 | $502.95 | |
| 3 | 3301-822 | NEEDLE SET | 1 | $45.95 | |
| 4 | 3301-879 | THROTTLE VALVE | 1 | $24.95 | |
| 5 | 3301-823 | THROTTLE VALVE SPRING | 1 | $20.63 | |
| 6 | 3301-899 | PLUNGER STARTER COVER | 1 | $17.95 | |
| 7 | 3301-313 | PAN PHILLIPS BOLT | 1 | $3.95 | |
| 8 | 3301-900 | PLUNGER STARTER (electric choke) | 1 | $220.95 | |
| 9 | 3301-901 | OIL RING | 1 | $1.95 | |
| 10 | 3301-902 | OIL RING | 1 | $2.95 | |
| 11 | 3301-829 | AIR ADJUST SCREW SET | 1 | $13.95 | |
| 12 | 3301-830 | THROTTLE SCREW SET | 1 | $20.63 | |
| 14 | 3301-880 | NEEDLE NOZZLE | 1 | $29.95 | |
| 15 | 3301-825 | MAIN NOZZLE | 1 | $32.95 | |
| 16 | 3301-907 | NEEDLE VALVE ASS'Y | 1 | $64.95 | |
| 17 | 3301-826 | PILOT JET | 1 | $29.95 | |
| 18 | 3301-905 | FLOAT PIN | 1 | $0.95 | |
| 19 | 3301-906 | FLOAT | 1 | $46.95 | |
| 20 | 3301-827 | FLOAT CHAMBER | 1 | $62.95 | |
| 21 | 3301-828 | PAN PHILLIPS BOLT | 1 | $1.95 |
