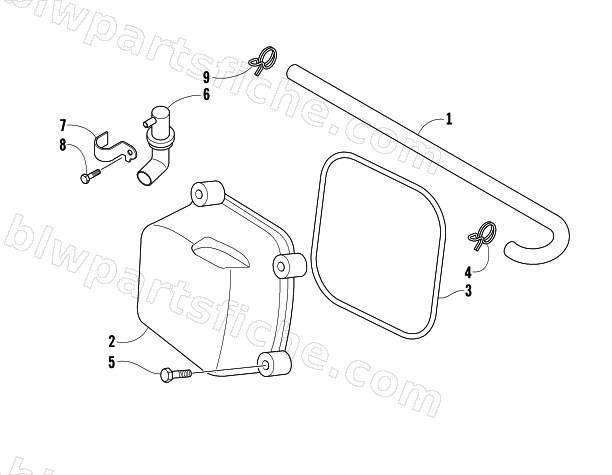

2005 Arctic Cat 90 Y-12 YOUTH — CYLINDER HEAD COVER ASSEMBLY
2005 90 Y-12 YOUTH
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-619 | BREATHER TUBE | 1 | $39.95 | |
| 2 | 3301-620 | CYLINDER HEAD COVER ASS'Y | 1 | $66.95 | |
| 3 | 3301-621 | HEAD COVER GASKET | 1 | $17.95 | |
| 4 | 3301-374 | CLIP | 1 | $1.95 | |
| 5 | 3301-622 | HEX WASHER FACE BOLT | 1 | $1.95 | |
| 6 | 3301-623 | CATCH TANK COMP | 1 | $29.95 | |
| 7 | 3301-624 | CLIP | 1 | $11.95 | |
| 8 | 3301-792 | HEX WASHER FACE BOLT | 1 | $2.95 | |
| 9 | 3301-875 | CLIP | 1 | $1.95 |
