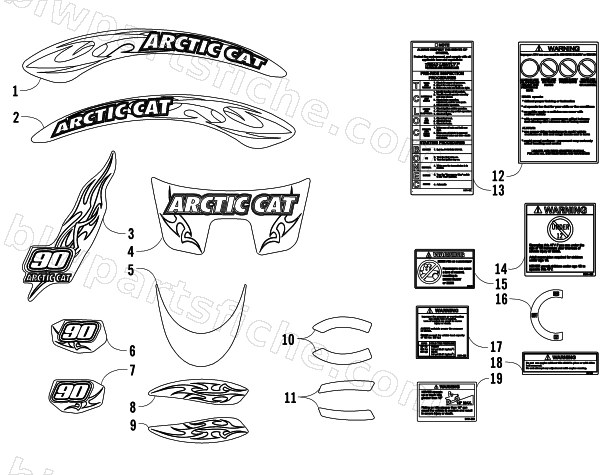

2005 Arctic Cat 90 Y-12 YOUTH — DECALS
2005 90 Y-12 YOUTH
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0411-920 | DECAL,GRAPHIC-UPPER-RH-RED (50/90) | 1 | $97.95 | |
| 1 | 0411-924 | DECAL,GRAPHIC-UPPER-RH-LIME (50/90) | 1 | $237.95 | |
| 2 | 0411-921 | DECAL,GRAPHIC-UPPER-LH-RED (50/90) | 1 | $97.95 | |
| 2 | 0411-925 | DECAL,GRAPHIC-UPPER-LH-LIME (50/90) | 1 | $237.95 | |
| 3 | 0411-916 | DECAL,GRAPHIC-FRONT-RED(90) | 1 | $97.95 | |
| 3 | 0411-917 | DECAL,GRAPHIC-FRONT-LGRN(90) | 1 | $267.95 | |
| 4 | 0411-922 | DECAL,GRAPHIC-REAR-RED (50/90) | 1 | $97.95 | |
| 4 | 0411-923 | DECAL,GRAPHIC-REAR-LIME (50/90) | 1 | $95.95 | |
| 5 | 0411-454 | DECAL,GRAPHIC-COWL (BLACK) | 1 | $22.95 | |
| 6 | 0411-908 | DECAL,GRAPHIC-RH-SIDE LOWER-RED(90) | 1 | $97.95 | |
| 6 | 0411-910 | DECAL,GRAPHIC-RH-SIDE LOWER-LIME (90) | 1 | $100.95 | |
| 7 | 0411-909 | DECAL,GRAPHIC-LH-SIDE LOWER-RED(90) | 1 | $97.95 | |
| 7 | 0411-911 | DECAL,GRAPHIC-LH-SIDE LOWER-LIME (90) | 1 | $100.95 | |
| 8 | 0411-904 | DECAL,GRAPHIC-RH FR FENDER-RED (50/90) | 1 | $97.95 | |
| 8 | 0411-906 | DECAL,GRAPHIC-RH FR FENDER-LIME (50/90) | 1 | $109.95 | |
| 9 | 0411-905 | DECAL,GRAPHIC-LH FR FENDER-RED (50/90) | 1 | $97.95 | |
| 9 | 0411-907 | DECAL,GRAPHIC-LH FR FENDER-LIME (50/90) | 1 | $97.95 | |
| 10 | 0411-962 | REFLECTOR,RED-RH | 1 | $10.97 | |
| 10 | 0411-961 | REFLECTOR,RED-LH | 1 | $10.97 | |
| 11 | 0411-960 | REFLECTOR,AMBER-RH | 1 | $37.95 | |
| 11 | 0411-959 | REFLECTOR,AMBER-LH | 1 | $37.95 | |
| 12 | 0411-218 | DECAL,WARNING-GENERAL | 1 | $17.87 | |
| 13 | 0411-457 | DECAL,WARNING-RVS/PRE RIDE | 1 | $163.95 | |
| 14 | 0411-400 | DECAL, WARNING-AGE (12) | 1 | $148.95 | |
| 15 | 0411-435 | DECAL, WARNING-PASSENGER | 1 | $66.95 | |
| 16 | 0411-649 | DECAL, FUEL SHUT-OFF(RED 90) | 1 | $163.95 | |
| 16 | 0411-644 | DECAL, FUEL SHUT-OFF | 1 | $23.39 | |
| 17 | 0411-455 | DECAL,WARNING-TIRE/LOAD (MINI) | 1 | $10.97 | |
| 18 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 19 | 0411-836 | DECAL,WARNING HILL (MINI) | 1 | $82.95 |
