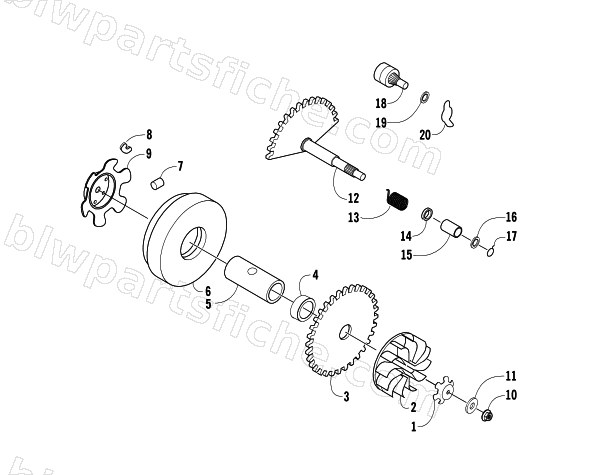

2005 Arctic Cat 90 Y-12 YOUTH — DRIVE CLUTCH ASSEMBLY
2005 90 Y-12 YOUTH
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-718 | KICK STARTER RATCHET | 1 | $52.95 | |
| 2 | 3301-719 | COOLING FAN | 1 | $29.95 | |
| 3 | 3301-720 | DRIVE FACE | 1 | $71.95 | |
| 4 | 3301-876 | BUSHING,CLUTCH | 1 | $9.95 | |
| 5 | 3301-721 | BUSH | 1 | $12.35 | |
| 6 | 3301-722 | FACE COMP MOVABLE DRIVE | 1 | $75.95 | |
| 7 | 3301-723 | WEIGHT ROLLER | 1 | $7.95 | |
| 8 | 3301-724 | SIDE PIECE | 1 | $3.95 | |
| 9 | 3301-725 | RAMP PLATE | 1 | $29.95 | |
| 10 | 3301-332 | HEX FLANGE NUT WITH SERRATION | 1 | $3.57 | |
| 11 | 3301-726 | PLAIN WASHER | 1 | $2.06 | |
| 12 | 3301-727 | STARTER SPINDLE | 1 | $71.95 | |
| 13 | 3301-728 | STARTER SPRING | 1 | $17.95 | |
| 14 | 3301-729 | KICK BOSS COLLAR | 1 | $5.95 | |
| 15 | 3301-730 | STARTER SPINDLE BUSH B | 1 | $10.95 | |
| 16 | 3301-731 | PLAIN WASHER | 1 | $3.95 | |
| 17 | 3301-732 | EXTERNAL CIR CLIP | 1 | $16.95 | |
| 18 | 3301-733 | KICK PINION ASS'Y | 1 | $64.95 | |
| 19 | 3301-734 | PLAIN WASHER | 1 | $1.64 |
