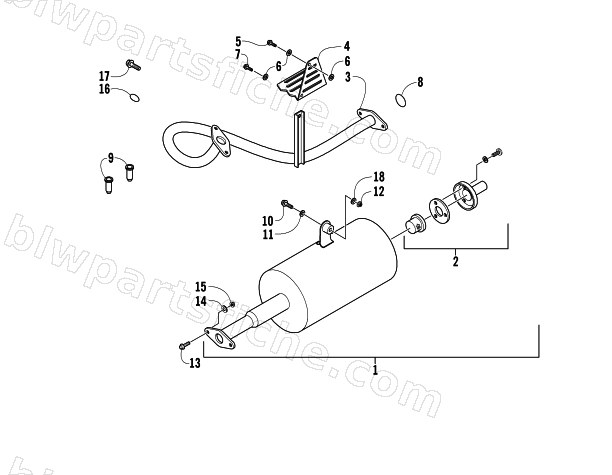

EXHAUST ASSEMBLY
2005 90 Y-12 YOUTH
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-833 | SILENCER+SPARK ARRESTER | 1 | $97.95 | |
| 2 | 3301-834 | SPARK ARRESTER | 1 | $32.95 | |
| 3 | 3301-832 | EXHAUST FRONT PIPE | 1 | $213.95 | |
| 4 | 3301-835 | PROTECTIVE COVER | 1 | $79.95 | |
| 5 | 3301-836 | HEX WASHER FACE BOLT | 1 | $2.95 | |
| 6 | 3301-087 | MUFFLER SHROUD PACKING | 1 | $1.95 | |
| 7 | 3301-837 | HEX WASHER FACE BOLT | 1 | $3.02 | |
| 8 | 3301-086 | EXHAUST PIPE GASKET | 1 | $10.95 | |
| 9 | 3301-838 | NUT, CAP | 1 | $0.65 | |
| 10 | 3301-839 | HEX WASHER FACE BOLT | 1 | $4.13 | |
| 11 | 3301-840 | PLAIN WASHER | 1 | $1.92 | |
| 12 | 3301-841 | NYLON NUT | 1 | $1.78 | |
| 13 | 3301-842 | HEX WASHER FACE BOLT | 1 | $1.95 | |
| 14 | 3301-843 | PLAIN WASHER | 1 | $1.95 | |
| 15 | 3301-844 | HEX FLANGE NUT WITH SERRATION | 1 | $1.95 | |
| 16 | 3301-845 | EXHAUST PIPE GASKET | 1 | $10.95 | |
| 17 | 3301-846 | HEX WASHER FACE BOLT | 1 | $3.71 | |
| 18 | 3301-361 | SPRING WASHER | 1 | $1.95 |
