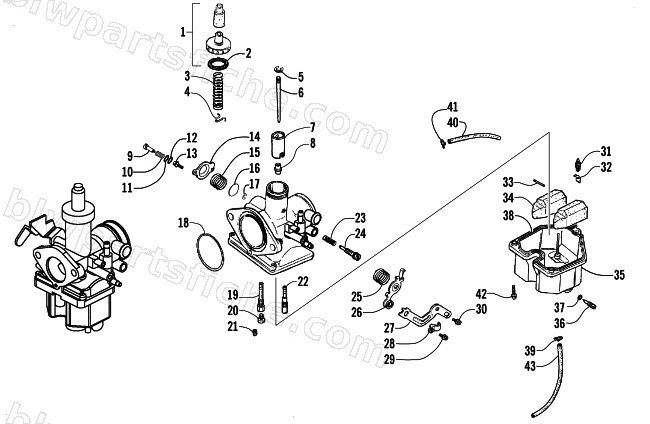

CARBURETOR ASSEMBLY

2006 250 DVX

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
0	3303-698	CARBURETOR ASSY	1	$390.95
1	3304-218	TOP COMP	1	$33.95
2	3304-217	TOP GASKET	1	$5.92
3	3304-230	SPG:COMPR	1	$4.13
4	3304-454	NEEDLE CLIP PLATE	1	$2.33
5	3304-240	BAR CLIP	1	$4.13
6	3304-448	JET NEEDLE	1	$23.39
7	3304-216	THROTTLE VALVE	1	$122.95
8	3304-456	NEEDLE JET	1	$23.39
9	3304-215	ADJUST SCREW	1	$4.82
10	3304-232	COMPR SPG	1	$0.95
11	3306-657	WASHER PLAIN	1	$1.50
12	3304-237	O-RING	1	$1.37
13	3304-427	SCREW WASHER 4*10	1	$0.85
14	3304-229	DIAPHRAGM COVER	1	$26.95
15	3304-449	COMPR SPG	1	$1.78
16	3304-227	DIAPHRAGM COMP	1	$37.95
17	3304-450	U-RING	1	$2.95
18	3304-238	O-RING	1	$2.33
19	3304-447	NEEDLE JET HOLDER	1	$20.63
20	5507-209	MAIN JET 95	1	$8.59
20	3304-441	MAIN JET #98	1	$13.73
21	3304-214	JET HOLDER	1	$10.97
22	3304-445	SLOW JET	1	$20.63
23	3304-231	COMPR SPG	1	$1.37
24	3304-455	STOP SCREW	1	$4.13
25	3304-233	TORSION SPG	1	$2.95
26	3303-627	CHOKE LEVER	1	$20.95
27	3304-443	WIRE STAY	1	$12.35
28	3304-241	STAY PLATE	1	$11.95
29	5507-117	SCREW	1	$1.23
30	3304-429	SCREW WASH 5*12	1	$0.81
31	3304-242	FLOAT VALVE COMP	1	$16.49
32	3304-249	SPECIAL CLIP	1	$4.13
33	3304-451	ARM PIN	1	$2.33
34	3304-444	FLOAT COMP	1	$30.95
35	3304-220	CHAMBER,FLOAT-ASSEMBLY	1	$47.95
36	3304-243	DRAIN SCREW PAN	1	$5.37
37	3304-239	O-RING	1	$1.78
38	3304-219	FLOAT CHAMBER GASKET	1	$3.02
39	3304-452	TUBE CLIP	1	$1.37
40	3304-446	TUBE SET	1	$3.71
41	3304-453	CLIP TUBE	1	$1.95
42	3304-428	SCREW WASHER	1	$1.50
43	3305-248	TUBE,DRAIN	1	$4.54
