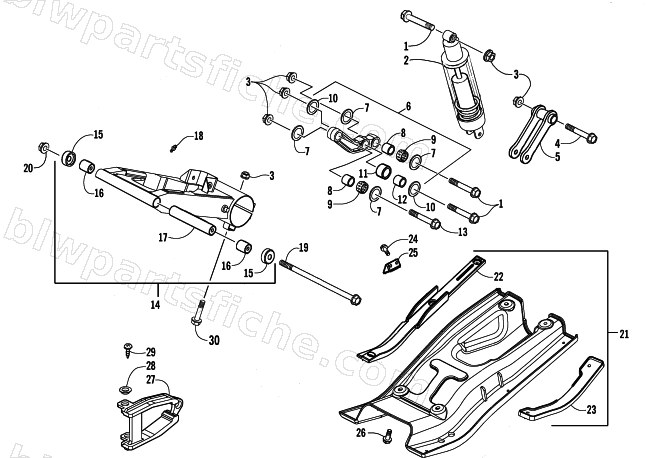

REAR SUSPENSION ASSEMBLY
2006 250 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-185 | BOLT FLANGE 10*53 | 1 | $2.61 | |
| 2 | 3304-366 | CUSHION ASSY RR | 1 | $274.95 | |
| 3 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 4 | 3304-083 | O-RING 14.8*2.4 | 1 | $4.95 | |
| 5 | 3304-365 | LINK ASSY RR CUSHION | 1 | $58.95 | |
| 6 | 3304-363 | ARM ASSY RR CUSHION | 1 | $248.95 | |
| 7 | 3304-459 | OIL SEAL 17*24*5 | 1 | $4.13 | |
| 8 | 3304-364 | COLLAR LINK | 1 | $12.35 | |
| 9 | 3304-421 | NEEDLE BEARING 17*24*15 | 1 | $33.95 | |
| 10 | 3304-090 | OIL SEAL 18*26*4 | 1 | $4.13 | |
| 11 | 3304-372 | GUIDE BUSH | 1 | $10.97 | |
| 12 | 3304-309 | COLLAR GUIDE BUSH | 1 | $10.97 | |
| 13 | 3304-436 | BOLT FLANGE 10*60 | 1 | $3.95 | |
| 14 | 3304-357 | FORK ASSY RR | 1 | $535.95 | |
| 15 | 3303-192 | CAP RR FORK DUST SEAL | 1 | $5.37 | |
| 16 | 3304-359 | BUSH RR FORK | 1 | $16.49 | |
| 17 | 3304-358 | COLLAR RR FORK DIST | 1 | $30.95 | |
| 18 | 3303-393 | NIPPLE GREASE | 1 | $6.75 | |
| 19 | 3303-150 | BOLT REAR FORK [AXLE] | 1 | $19.25 | |
| 20 | 3304-411 | NUT U 14MM | 1 | $9.59 | |
| 21 | 3305-972 | PROTECTOR ASSY RR FORK | 1 | $58.95 | |
| 22 | 3304-287 | SLIDER CHAIN | 1 | $20.63 | |
| 23 | 3304-288 | PROTECTOR DISK | 1 | $10.97 | |
| 24 | 3304-405 | BOLT FLANGE 6MM | 1 | $1.78 | |
| 25 | 3304-289 | SLIDER CHAIN | 1 | $2.75 | |
| 26 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 27 | 3304-361 | SLIDER CHAIN | 1 | $20.63 | |
| 28 | 3304-360 | COLLAR CHAIN SLIDER | 1 | $2.33 | |
| 29 | 3304-690 | SCREW, TAPPING- 6*12 | 1 | $2.06 | |
| 30 | 3304-437 | BOLT FLANGE 10*70 | 1 | $4.54 |
