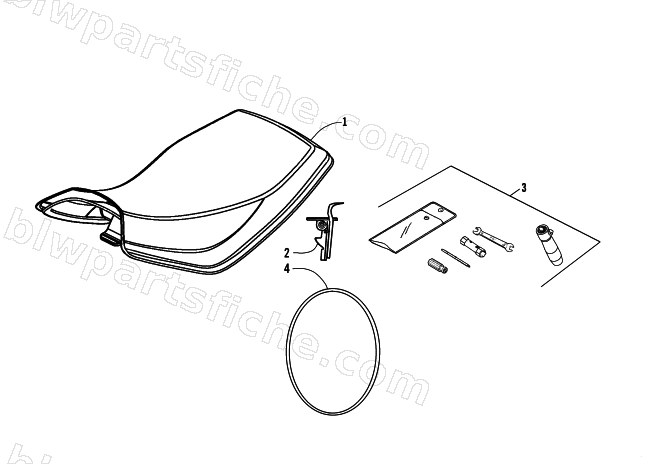

2006 Arctic Cat 250 DVX — SEAT AND TOOL KIT ASSEMBLY
2006 250 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-391 | SEAT ASSY | 1 | $288.95 | |
| 2 | 3304-392 | HOOK ASSY SEAT LOCK | 1 | $26.95 | |
| 3 | 3304-400 | TOOL SET | 1 | $47.95 | |
| 4 | 3303-242 | BAND TOOL SET | 1 | $1.64 |
