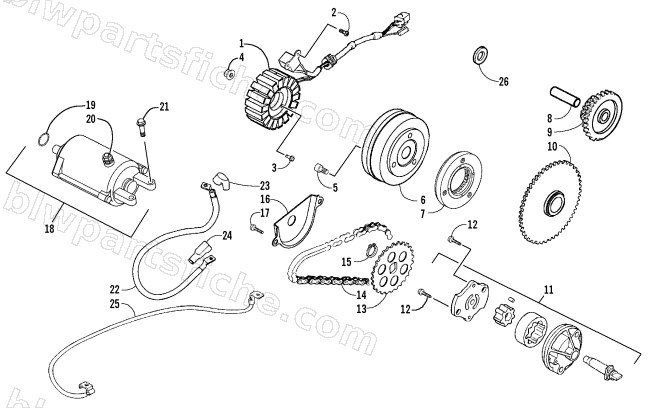

2006 Arctic Cat 250 DVX — STARTER MOTOR AND MAGNETO ASSEMBLY
2006 250 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-682 | STATOR COMP | 1 | $190.95 | |
| 2 | 3304-118 | SCREW PAN 5*16 | 1 | $0.85 | |
| 3 | 3304-111 | R/B 3307-225 | 1 | $0.85 | |
| 4 | 3304-024 | NUT,FLANGE 14MM | 1 | $2.33 | |
| 5 | 3304-208 | BOLT SOCKET 8*15 | 1 | $1.78 | |
| 6 | 3303-832 | FLYWHEEL COMP (D406) | 1 | $156.95 | |
| 7 | 3303-827 | ONE WAY CLUTCH STARTER ASSY | 1 | $647.95 | |
| 8 | 3303-825 | SHAFT STARTER REDUCTION GEAR | 1 | $3.71 | |
| 9 | 3303-824 | GEAR STARTER REDUCTION | 1 | $37.95 | |
| 10 | 3305-411 | GEAR COMP STARTING CLUTCH | 1 | $82.95 | |
| 11 | 3303-687 | PUMP ASSY OIL | 1 | $54.95 | |
| 12 | 3303-385 | BOLT FLANGE SH 6*28 | 1 | $0.81 | |
| 13 | 3303-688 | SPRKT OIL PUMP DRIVE | 1 | $17.87 | |
| 14 | 3303-690 | CHAIN OIL PUMP DRIVE A | 1 | $33.95 | |
| 15 | 3304-146 | CIR EXTERNAL 10MM | 1 | $0.95 | |
| 16 | 3303-697 | SEPARATER OIL | 1 | $5.37 | |
| 17 | 3303-381 | BOLT FLANGE SH 6*12 | 1 | $0.81 | |
| 18 | 3304-274 | MOTOR UNIT STARTER | 1 | $298.95 | |
| 19 | 3304-104 | O-RING 24.4*3.1 | 1 | $1.95 | |
| 20 | 3304-011 | NUT WASH 6MM | 1 | $0.81 | |
| 21 | 3304-002 | BOLT FLANGE SHF 6*22 | 1 | $0.81 | |
| 22 | 3304-277 | CABLE STARTER MOTOR | 1 | $50.95 | |
| 23 | 3305-251 | BOOT,STARTING MOTOR TERMINAL | 1 | $3.57 | |
| 24 | 3305-252 | BOOT,STARTER SOLENOID | 1 | $3.57 | |
| 25 | 3304-279 | CABLE EARTH | 1 | $30.95 | |
| 26 | 3304-036 | WASHER THRUST 14*28*2 | 1 | $1.50 |
