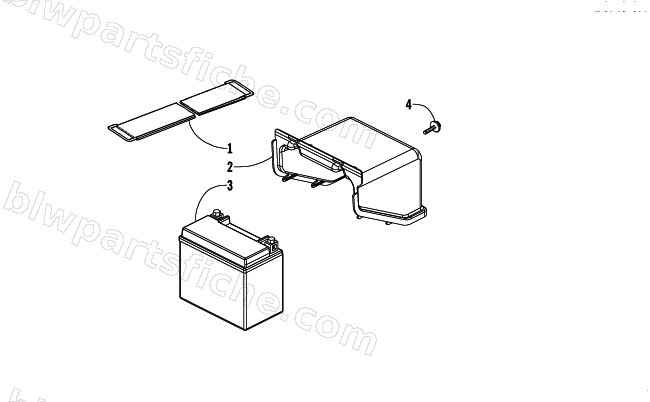

2006 Arctic Cat 250 UTILITY — BATTERY ASSEMBLY
2006 250 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-937 | BAND BATTERY | 1 | $13.73 | |
| 2 | 3303-996 | COVER BATTERY(MARSH GREEN) | 1 | $26.95 | |
| 2 | 3306-689 | COVER BATTERY (RED) | 1 | $20.63 | |
| 3 | 3304-275 | BATTERY YTX12-BS | 1 | $163.95 | |
| 4 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 |
