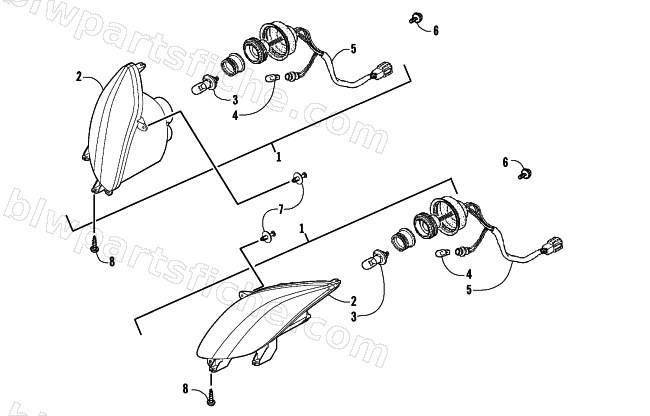

2006 Arctic Cat 250 UTILITY — HEADLIGHT ASSEMBLY
2006 250 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-844 | LIGHT ASSY R HEAD | 1 | $164.95 | |
| 1 | 3303-845 | LIGHT ASSY L HEAD | 1 | $187.95 | |
| 2 | 3304-643 | UNIT HEAD LIGHT RH | 1 | $129.95 | |
| 2 | 3304-644 | UNIT HEAD LIGHT LH | 1 | $174.95 | |
| 3 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 4 | 3303-847 | BULB POSITION LIGHT 12V5W | 1 | $5.65 | |
| 6 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 7 | 3304-057 | CLIP FENDER | 1 | $1.92 | |
| 8 | 3304-645 | SCREW TAPPING 5*12 | 1 | $1.23 |
