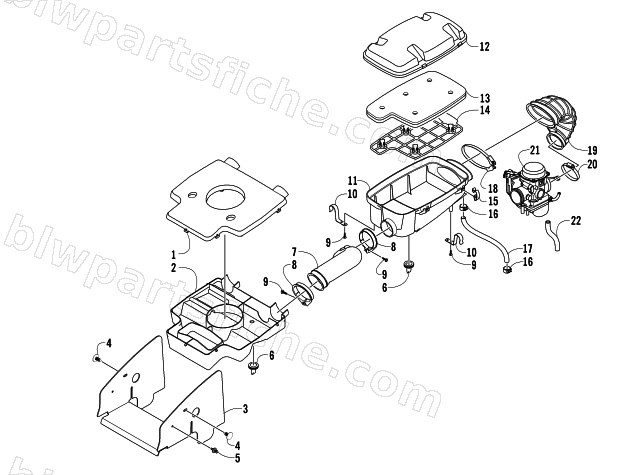

2006 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE — AIR INTAKE ASSEMBLY
2006 400 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-091 | DIVERTER,AIR-IN | 1 | $40.95 | |
| 2 | 0413-111 | DIVERTER,AIR INTAKE-BOTTOM | 1 | $40.95 | |
| 3 | 2406-013 | SHROUD,SPLASH-AIR INTAKE (B BODY) | 1 | $37.95 | |
| 4 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 5 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 6 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 7 | 0470-529 | BOOT,AIR IN-CARB | 1 | $64.95 | |
| 8 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 9 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 10 | 0423-454 | CLIP,MOUNTING-AIRBOX | 1 | $16.49 | |
| 11 | 0470-853 | AIR BOX,BOTTOM | 1 | $85.95 | |
| 12 | 0470-877 | R/B 1470-221 | 1 | $99.95 | |
| 13 | 0470-663 | FILTER, AIR | 1 | $42.95 | |
| 14 | 0470-516 | SCREEN,AIR FILTER | 1 | $50.95 | |
| 15 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 16 | 0423-045 | CLAMP,HOSE-SPRING(.685"ID X.38") | 1 | $1.78 | |
| 17 | 0410-087 | HOSE,VENT-CRANKCASE | 1 | $16.49 | |
| 18 | 0423-554 | CLAMP,OVAL-( 64x125x15) | 1 | $20.63 | |
| 19 | 0470-517 | BOOT,CARBURATOR | 1 | $99.95 | |
| 20 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 21 | 0470-667 | CARB,CVK 34-AE(PUMPER) | 1 | $817.95 | |
| 22 | 0510-592 | HOSE,CARB DRAIN | 1 | $6.75 |
