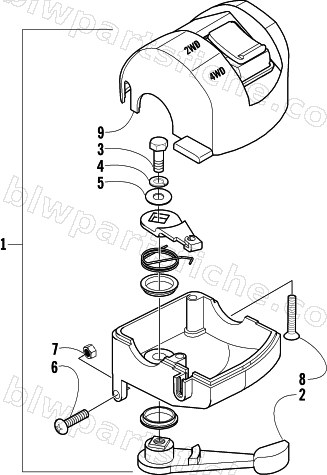

THROTTLE CASE ASSEMBLY
2006 400 AUTOMATIC TRANSMISSION 4X4 TRV
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0509-012 | THROTTLE, SELECTOR - ASSEMBLY (2WD/4WD) | 1 | $199.95 | |
| 2 | 3409-001 | LEVER,THROTTLE | 1 | $26.95 | |
| 3 | 3007-392 | BOLT | 1 | $3.95 | |
| 4 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 5 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 6 | 3423-014 | SCREW,5MM | 1 | $2.06 | |
| 7 | 3423-327 | NUT,5MM | 1 | $2.33 | |
| 8 | 3423-199 | SCREW, 5X30 | 1 | $1.78 | |
| 9 | 0409-048 | SWITCH, ACTUATOR (2WD/4WD) | 1 | $112.95 |
