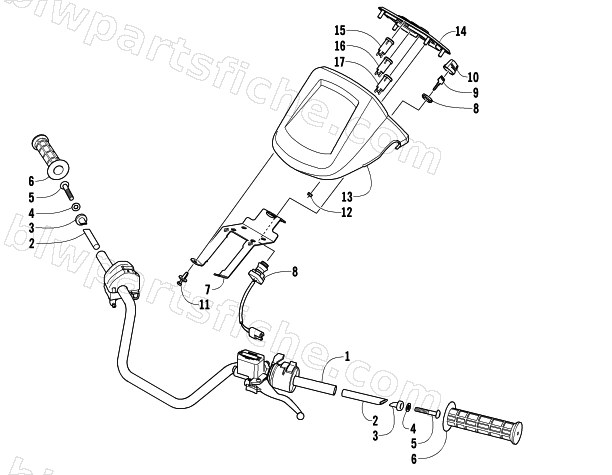

2006 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 VP — HANDLEBAR ASSEMBLY
2006 400 AUTOMATIC TRANSMISSION 4X4 VP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0505-418 | HANDLE BAR-BLACK | 1 | $30.95 | |
| 2 | 0405-148 | R/B 3323-054 | 1 | $18.95 | |
| 3 | 0405-149 | END,HANDLE BAR | 1 | $3.16 | |
| 4 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 5 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 6 | 0405-147 | GRIP,HANDLEBAR (EXTERNAL) | 1 | $20.63 | |
| 7 | 1506-578 | BRACKET,GAUGE-BLACK | 1 | $30.95 | |
| 8 | 3430-040 | SWITCH, IGN | 1 | $187.95 | |
| 9 | 3409-007 | KEY, BLANK (C SERIES) | 1 | $30.95 | |
| 9 | 3409-011 | KEY, BLANK ( D SERIES) | 1 | $30.95 | |
| 9 | 3409-012 | KEY, BLANK (E SERIES) | 1 | $30.95 | |
| 9 | 3409-013 | KEY, BLANK (F SERIES) | 1 | $30.95 | |
| 10 | 0409-013 | COVER,KEY | 1 | $6.34 | |
| 11 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 12 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 13 | 0405-193 | POD,INSTRUMENT-MARSH GREEN (VP) | 1 | $97.95 | |
| 13 | 0405-192 | POD,INSTRUMENT-RED (VP) | 1 | $98.95 | |
| 14 | 0405-198 | BEZEL,LIGHTS-POD | 1 | $16.95 | |
| 15 | 0420-068 | LIGHT,INDICATOR-TEMP | 1 | $16.49 | |
| 16 | 0420-066 | LIGHT,INDICATOR-"N" | 1 | $13.73 | |
| 17 | 0420-067 | LIGHT,INDICATOR-"R" | 1 | $16.49 |
