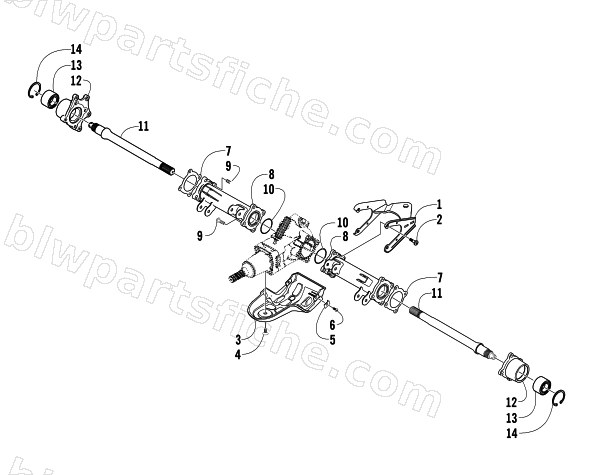

2006 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 VP — REAR AXLE ASSEMBLY
2006 400 AUTOMATIC TRANSMISSION 4X4 VP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-675 | HITCH, TRAILER-BLACK | 1 | $68.95 | |
| 2 | 0423-116 | SCREW,SELF TAP-TSPNH M10X1.5X37 | 1 | $30.95 | |
| 3 | 0406-415 | PANEL,GEARCASE RR | 1 | $24.95 | |
| 4 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 5 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 6 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 7 | 0402-374 | GASKET,AXLE-RR | 1 | $20.63 | |
| 8 | 0502-090 | HOUSING,AXLE-RH-BLACK | 1 | $283.95 | |
| 8 | 0502-091 | HOUSING,AXLE-LH-BLACK | 1 | $283.95 | |
| 9 | 0423-117 | SCREW,SELFTAP-TSPNH M10X1.5X33 | 1 | $1.78 | |
| 10 | 0423-119 | O-RING,79.5 X2MM | 1 | $3.57 | |
| 11 | 1402-400 | AXLE,REAR-RH(KOYO/M22) | 1 | $190.95 | |
| 11 | 1402-401 | AXLE,REAR-LH(KOYO/M22) | 1 | $190.95 | |
| 12 | 0502-859 | HOUSING,BEARING-RH MACH | 1 | $154.95 | |
| 12 | 0502-681 | HOUSING,BEARING-LH-MACH | 1 | $103.95 | |
| 13 | 1402-027 | BEARING, WHEEL | 1 | $43.95 | |
| 14 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 |
