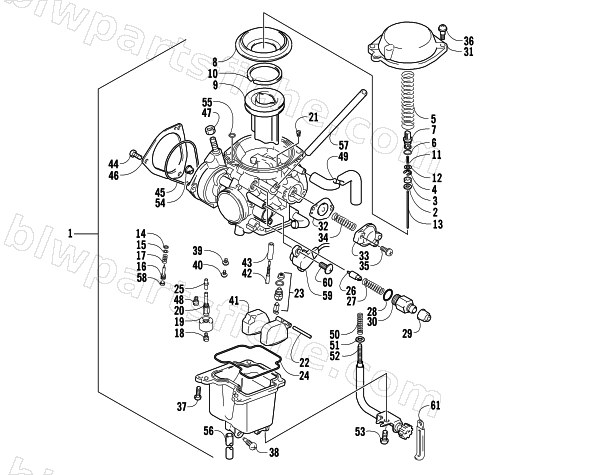

CARBURETOR ASSEMBLY
2006 400 DVX LIMITED EDITION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3470-031 | CARBURETOR ASSY (37mm) | 1 | $1,178.95 | |
| 2 | 3423-567 | WASHER | 1 | $3.02 | |
| 3 | 4505-118 | RING | 1 | $30.95 | |
| 4 | 4505-119 | E RING,MULTIPLE JET NOZZLE | 1 | $20.63 | |
| 5 | 4505-145 | SPRING | 1 | $26.95 | |
| 6 | 3423-709 | O RING (D:1.9,ID:4.8) | 1 | $4.95 | |
| 7 | 4505-123 | HOLDER | 1 | $45.95 | |
| 8 | 4505-130 | DIAPHRAGM | 1 | $74.95 | |
| 9 | 4505-126 | VALVE,PISTON | 1 | $108.95 | |
| 10 | 4505-146 | RING | 1 | $13.95 | |
| 11 | 4505-124 | SPRING | 1 | $13.73 | |
| 12 | 4505-143 | WASHER | 1 | $3.71 | |
| 13 | 4505-117 | JET NEEDLE(5E26-1) | 1 | $108.95 | |
| 14 | 3423-568 | O RING,PILOT AIR SCREW | 1 | $10.97 | |
| 15 | 3423-566 | WASHER | 1 | $2.95 | |
| 16 | 4505-152 | ADJUSTER | 1 | $26.95 | |
| 17 | 4505-113 | SPRING,THROTTLE SCREW | 1 | $12.35 | |
| 18 | 4505-071 | JET,MAIN 130 | 1 | $13.73 | |
| 19 | 4505-140 | RING | 1 | $42.95 | |
| 20 | 4505-141 | JET HOLDER | 1 | $48.95 | |
| 21 | 4505-136 | JET | 1 | $26.95 | |
| 22 | 4505-110 | PIN,FLOAT | 1 | $8.21 | |
| 23 | 4505-116 | NEEDLE VALVE ASSY | 1 | $58.95 | |
| 24 | 4505-111 | GASKET | 1 | $23.39 | |
| 25 | 4505-114 | NEEDLE JET(P-0M) | 1 | $50.95 | |
| 26 | 4505-120 | PLUNGER ASSY | 1 | $37.95 | |
| 27 | 4505-121 | SPRING | 1 | $17.87 | |
| 28 | 3423-565 | O RING | 1 | $3.95 | |
| 29 | 3470-011 | CAP | 1 | $12.35 | |
| 30 | 4505-122 | GUIDE HOLDER | 1 | $26.95 | |
| 32 | 4505-144 | DIAPHRAGM ASSY | 1 | $48.95 | |
| 33 | 4505-129 | COVER ASSY | 1 | $85.95 | |
| 34 | 4505-125 | SPRING | 1 | $8.21 | |
| 35 | 3423-570 | SCREW | 1 | $3.30 | |
| 36 | 3423-564 | SCREW | 1 | $3.02 | |
| 37 | 4505-133 | SCREW | 1 | $2.95 | |
| 38 | 3423-563 | SCREW,DRAIN | 1 | $10.97 | |
| 39 | 0694-025 | SCREW | 1 | $1.78 | |
| 40 | 3423-571 | SCREW | 1 | $4.95 | |
| 41 | 4505-109 | FLOAT ASSY | 1 | $69.95 | |
| 42 | 4505-135 | PILOT JET (#22.5) | 1 | $32.95 | |
| 43 | 4505-142 | PIPE | 1 | $20.95 | |
| 44 | 3007-690 | SCREW,M4X6 | 1 | $2.47 | |
| 45 | 4505-148 | O RING | 1 | $20.95 | |
| 46 | 4505-127 | COVER,THROTTLE | 1 | $118.95 | |
| 47 | 3423-572 | NUT | 1 | $6.34 | |
| 48 | 4505-134 | STARTER JET (#60.0) | 1 | $32.95 | |
| 49 | 4505-150 | HOSE | 1 | $64.95 | |
| 50 | 4505-112 | SPRING,THROTTLE SCREW | 1 | $12.95 | |
| 51 | 3423-573 | WASHER | 1 | $2.95 | |
| 52 | 4505-137 | ADJUST SCREW ASSY | 1 | $147.95 | |
| 53 | 4505-151 | SCREW | 1 | $1.50 | |
| 54 | 4505-147 | CABLE GUIDE | 1 | $20.63 | |
| 55 | 3423-569 | O RING | 1 | $10.97 | |
| 56 | 4505-149 | HOSE | 1 | $40.95 | |
| 57 | 0693-784 | HOSE,M5X9X600 | 1 | $14.95 | |
| 58 | 4505-154 | PLUG | 1 | $12.35 | |
| 59 | 4505-155 | SENSOR ASSY | 1 | $220.95 | |
| 60 | 4505-156 | SCREW | 1 | $3.57 | |
| 61 | 3004-787 | CLAMP,M6 | 1 | $4.26 |
