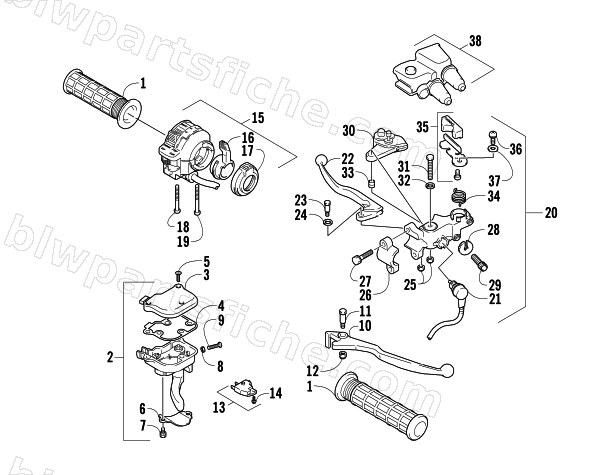

CONTROLS
2006 400 DVX LIMITED EDITION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3405-037 | GRIP | 1 | $26.95 | |
| 2 | 3405-042 | CASE ASSY,THROTTLE | 1 | $224.95 | |
| 3 | 3405-035 | CAP | 1 | $82.95 | |
| 4 | 3423-582 | GASKET | 1 | $42.95 | |
| 5 | 3423-581 | SCREW | 1 | $12.35 | |
| 6 | 3405-036 | HOLDER | 1 | $54.95 | |
| 7 | 3423-580 | BOLT | 1 | $12.35 | |
| 8 | 3007-572 | NUT,5MM | 1 | $2.47 | |
| 9 | 1691-018 | SCREW | 1 | $4.29 | |
| 10 | 3402-886 | LEVER,FRONT BRAKE | 1 | $66.95 | |
| 11 | 3423-583 | BOLT,BRAKE LEVER PIVOT | 1 | $9.59 | |
| 12 | 3423-748 | NUT | 1 | $4.13 | |
| 13 | 3409-037 | SWITCH ASSY,STOP | 1 | $69.95 | |
| 14 | 3423-750 | SCREW | 1 | $1.95 | |
| 15 | 3509-011 | SWITCH ASSY,HANDLE,L | 1 | $244.95 | |
| 16 | 3409-009 | LEVER, CHOKE | 1 | $33.95 | |
| 17 | 3409-010 | COVER, CHOKE | 1 | $20.63 | |
| 18 | 3423-196 | SCREW, 5X40 | 1 | $2.33 | |
| 19 | 3423-197 | SCREW, 5X45 | 1 | $2.61 | |
| 20 | 3446-419 | LEVER SET,CLUTCH | 1 | $398.95 | |
| 21 | 3409-041 | SWITCH, CLUTCH | 1 | $74.95 | |
| 22 | 3402-964 | LEVER | 1 | $47.95 | |
| 23 | 3423-751 | BOLT, PIVOT | 1 | $13.73 | |
| 24 | 3423-746 | WASHER | 1 | $10.95 | |
| 25 | 3423-891 | NUT | 1 | $2.61 | |
| 26 | 3502-025 | HOLDER | 1 | $58.95 | |
| 27 | 3007-515 | BOLT,WATER INLET CONNECTOR | 1 | $3.16 | |
| 28 | 3402-963 | NUT, ADJUSTER | 1 | $32.95 | |
| 29 | 3423-749 | BOLT, ADJUSTER | 1 | $16.49 | |
| 30 | 3402-968 | LOCK SET, PARKING LOCK | 1 | $140.95 | |
| 31 | 3423-745 | BOLT, PARKING LOCK | 1 | $12.35 | |
| 32 | 3423-747 | WASHER | 1 | $10.95 | |
| 33 | 3402-965 | SPACER | 1 | $20.95 | |
| 34 | 3402-966 | SPRING, RETURN | 1 | $25.95 | |
| 35 | 3402-967 | KNOB SET, PARKING | 1 | $47.95 | |
| 36 | 3423-753 | SCREW, PARKING PLATE | 1 | $10.95 | |
| 37 | 3423-752 | WASHER | 1 | $10.95 | |
| 38 | 3406-019 | COVER,REAR BRAKE | 1 | $47.95 |
