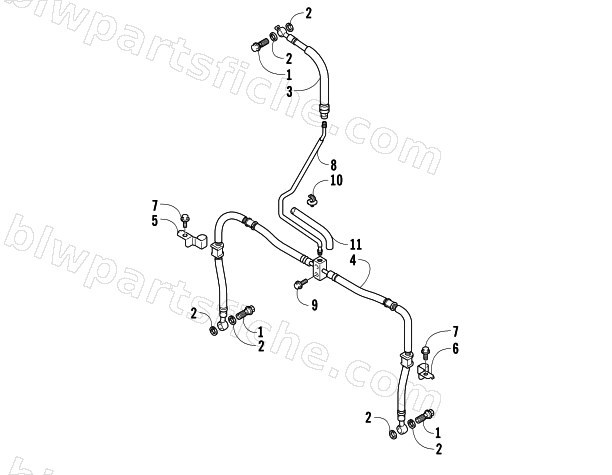

FRONT BRAKE HOSE ASSEMBLY
2006 400 DVX LIMITED EDITION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3423-719 | BOLT | 1 | $6.34 | |
| 2 | 3006-112 | GASKET 02 660 L/C | 1 | $9.59 | |
| 3 | 3406-169 | HOSE,BRAKE FRONT NO.1 | 1 | $114.95 | |
| 4 | 3406-154 | HOSE, FRONT BRAKE NO.2 | 1 | $263.95 | |
| 5 | 3423-754 | CLAMP, HOSE NO.2 RH | 1 | $20.63 | |
| 6 | 3423-755 | CLAMP, HOSE NO.2 LH | 1 | $20.63 | |
| 7 | 3007-457 | BOLT | 1 | $3.16 | |
| 8 | 3406-155 | PIPE, FRONT BRAKE | 1 | $47.95 | |
| 9 | 3423-885 | BOLT,RECOIL STARTER-6X12 | 1 | $2.61 | |
| 10 | 3423-728 | CLAMP | 1 | $4.95 | |
| 11 | 3406-119 | COVER, FR BRAKE PIPE | 1 | $20.63 |
