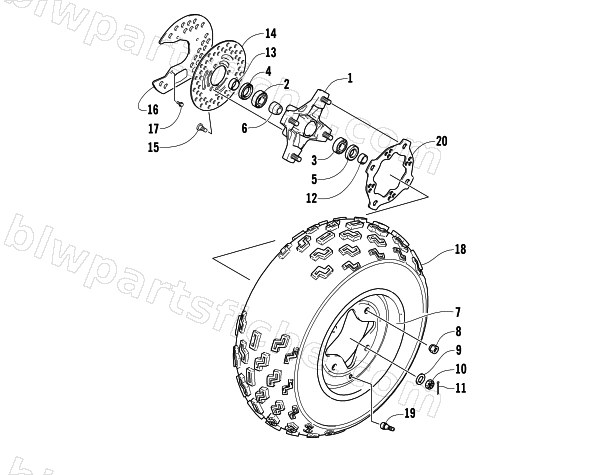

FRONT WHEEL ASSEMBLY
2006 400 DVX LIMITED EDITION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3405-021 | HUB,FRONT WHEEL | 1 | $354.95 | |
| 2 | 3402-893 | BEARING, FRONT HUB INNER | 1 | $47.95 | |
| 3 | 3402-899 | BEARING, FRONT HUB OUTER | 1 | $50.95 | |
| 4 | 3402-914 | DUST SEAL INNER | 1 | $23.39 | |
| 5 | 3402-913 | DUST SEAL OUTER | 1 | $29.95 | |
| 6 | 3405-023 | SPACER,FR HUB BEARING | 1 | $32.95 | |
| 7 | 3406-151 | RIM,FRONT WHEEL(10X5.5AT) | 1 | $591.95 | |
| 8 | 3423-788 | NUT | 1 | $6.34 | |
| 9 | 3007-902 | WASHER-14MM | 1 | $2.95 | |
| 10 | 3423-622 | NUT, HUB | 1 | $6.34 | |
| 11 | 3423-608 | PIN, COTTER | 1 | $3.16 | |
| 12 | 3402-895 | SPACER, FRONT AXLE | 1 | $12.35 | |
| 13 | 3402-896 | SPACER, FR AXLE NO.2 | 1 | $17.95 | |
| 14 | 3406-028 | DISC,FRONT BRAKE | 1 | $235.95 | |
| 15 | 3423-649 | BOLT, BRAKE DISC | 1 | $4.95 | |
| 16 | 3406-152 | COVER,FRONT DISC | 1 | $61.95 | |
| 17 | 3423-455 | BOLT, 6 X 12 | 1 | $2.06 | |
| 18 | 3406-017 | TIRE,FRONT | 1 | $225.95 | |
| 19 | 3406-008 | VALVE ASSY,WHEEL RIM,TR412 | 1 | $20.63 | |
| 20 | 3405-022 | PLATE,FRONT HUB | 1 | $30.95 |
