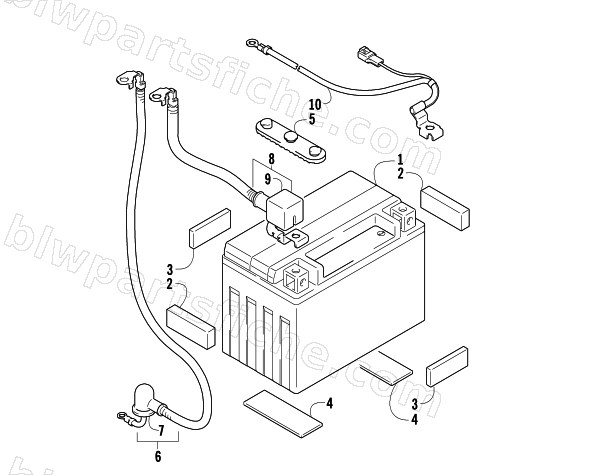

2006 Arctic Cat 400 DVX — BATTERY ASSEMBLY
2006 400 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3445-034 | BATTERY ASSY,YTX9-BS,12V,8AH | 1 | $169.95 | |
| 2 | 3406-003 | PROTECTOR,BATTERY | 1 | $5.95 | |
| 3 | 3445-042 | PROTECTOR,BATTERY,70X100X6 | 1 | $16.49 | |
| 4 | 3445-037 | PROTECTOR,BATTERY | 1 | $5.92 | |
| 5 | 3445-035 | PROTECTOR,BATTERY | 1 | $10.95 | |
| 6 | 3445-039 | WIRE, STARTER MOTOR | 1 | $66.95 | |
| 7 | 3545-018 | CAP, STARTER MOTOR | 1 | $13.73 | |
| 8 | 3445-040 | WIRE, BATTERY PLUS | 1 | $54.95 | |
| 9 | 3445-019 | REEL,STARTER | 1 | $90.95 | |
| 10 | 3445-041 | WIRE, BATTERY MINUS | 1 | $58.95 |
