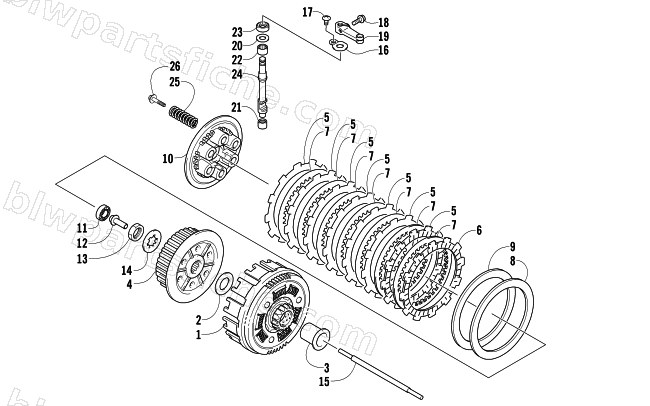

CLUTCH ASSEMBLY
2006 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3406-145 | GEAR ASSY, PRIMARY DRIVEN | 1 | $468.95 | |
| 2 | 3423-619 | WASHER | 1 | $5.51 | |
| 3 | 3402-940 | SPACER, PRIMARY DRIVEN | 1 | $85.95 | |
| 4 | 3446-414 | HUB, SLEEVE | 1 | $151.95 | |
| 5 | 3446-359 | PLATE,CLUTCH DRIVE NO,1 | 1 | $58.95 | |
| 6 | 3446-360 | PLATE,DRIVE NO.2 | 1 | $58.95 | |
| 7 | 3446-007 | PLATE, CLUTCH DRIVEN | 1 | $37.95 | |
| 8 | 3423-774 | SEAT, WASHER | 1 | $20.63 | |
| 9 | 3423-775 | WASHER | 1 | $19.25 | |
| 10 | 3446-415 | DISC, PRESSURE | 1 | $82.95 | |
| 11 | 3402-043 | BEARING,BALL,M12X28X8 | 1 | $41.95 | |
| 12 | 3446-395 | PIECE, CL RLSE | 1 | $54.95 | |
| 13 | 3423-254 | NUT,20MM | 1 | $3.95 | |
| 14 | 3423-688 | LOCK WASHER | 1 | $3.44 | |
| 15 | 3446-394 | ROD, CLUTCH PUSH | 1 | $47.95 | |
| 16 | 3402-941 | RETAINER, CL RLSE OIL SEAL | 1 | $10.95 | |
| 17 | 3403-225 | STOPPER,CL REL CAMSHAFT | 1 | $4.40 | |
| 18 | 3423-898 | BOLT,M6X16 | 1 | $3.02 | |
| 19 | 3446-361 | ARM,CLUTCH RELEASE | 1 | $69.95 | |
| 20 | 3423-765 | WASHER, CLUTCH RELEASE | 1 | $3.30 | |
| 21 | 3402-972 | BEARING, CLUTCH RELEASE-LOWER | 1 | $37.95 | |
| 22 | 3402-973 | BEARING, CLUTCH RELEASE-UPPER | 1 | $35.95 | |
| 23 | 3402-974 | SEAL, CLUTCH RELEASE ARM | 1 | $17.87 | |
| 24 | 3446-396 | CAM SHAFT, CL RLSE | 1 | $91.95 | |
| 25 | 3423-577 | SPRING | 1 | $17.87 | |
| 26 | 3423-776 | BOLT | 1 | $4.95 |
