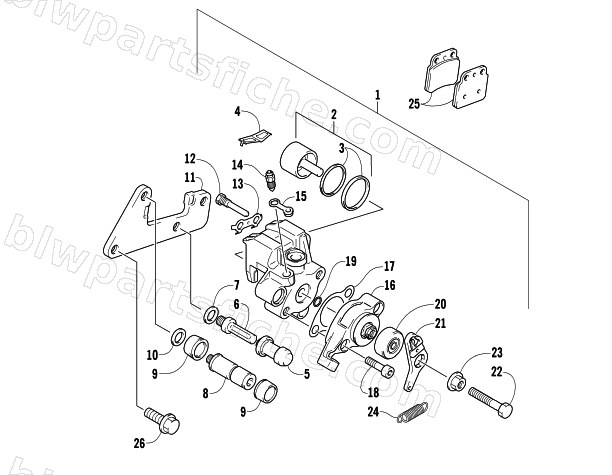

REAR BRAKE ASSEMBLY
2006 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3406-076 | CALIPER ASSY,REAR | 1 | $494.95 | |
| 2 | 3406-078 | PISTON SET | 1 | $112.95 | |
| 4 | 3406-036 | SPRING,PAD | 1 | $20.63 | |
| 5 | 3406-043 | BOOT | 1 | $20.95 | |
| 6 | 3423-584 | BOLT,PIN | 1 | $12.35 | |
| 7 | 3406-035 | WASHER,WAVE | 1 | $1.78 | |
| 8 | 3423-762 | PIN | 1 | $47.95 | |
| 9 | 3406-033 | BOOT,PIN | 1 | $17.87 | |
| 10 | 3406-034 | WASHER,FRICTION | 1 | $3.02 | |
| 11 | 3406-128 | BRACKET | 1 | $79.95 | |
| 12 | 3406-038 | PIN,HANGER | 1 | $17.95 | |
| 13 | 3406-039 | WASHER | 1 | $3.57 | |
| 14 | 3406-025 | BLEEDER | 1 | $20.63 | |
| 15 | 3406-026 | CAP,BLEEDER | 1 | $12.95 | |
| 16 | 3406-129 | ACTUATOR,PARKING BRAKE | 1 | $244.95 | |
| 17 | 3406-080 | PACKING | 1 | $20.95 | |
| 18 | 3423-763 | BOLT | 1 | $8.95 | |
| 19 | 3423-592 | O RING | 1 | $10.97 | |
| 20 | 3406-081 | BOOT | 1 | $13.73 | |
| 21 | 3406-130 | ARM | 1 | $37.95 | |
| 22 | 3423-760 | BOLT, ADJUST | 1 | $6.34 | |
| 23 | 3423-593 | NUT | 1 | $4.13 | |
| 24 | 3423-595 | SPRING | 1 | $16.49 | |
| 25 | 3406-075 | PAD SET | 1 | $118.95 | |
| 26 | 3423-789 | BOLT | 1 | $4.54 |
