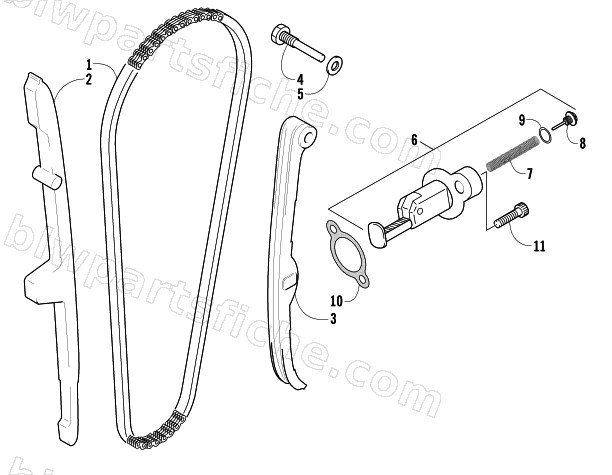

CAM CHAIN ASSEMBLY
2006 400 MANUAL TRANSMISSION 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-281 | CHAIN,CAMSHAFT DRIVE | 1 | $163.95 | |
| 2 | 3402-612 | GUIDE, CAM CHAIN | 1 | $112.95 | |
| 3 | 3402-613 | TENSIONER, CAM CHAIN | 1 | $104.95 | |
| 4 | 3423-074 | BOLT, CAMSHAFT CHAIN TENSIONER | 1 | $6.34 | |
| 5 | 3402-436 | WASHER | 1 | $1.92 | |
| 6 | 3402-614 | ADJUSTER ASSY, TENSIONER | 1 | $169.95 | |
| 7 | 3423-484 | SPRING | 1 | $13.73 | |
| 8 | 3423-485 | PLUG, ADJUSTER | 1 | $33.95 | |
| 9 | 3423-286 | O RING | 1 | $8.21 | |
| 10 | 3403-020 | GASKET,ADJUSTER | 1 | $6.75 | |
| 11 | 3007-446 | BOLT,THERMOSTAT CAP | 1 | $3.44 |
