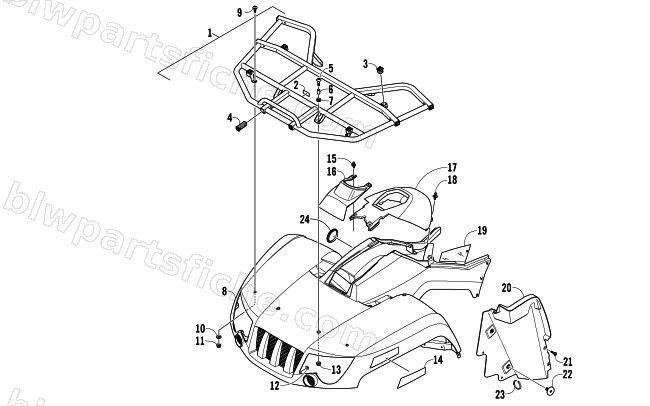

2006 Arctic Cat 400 MANUAL TRANSMISSION 4X4 VP — FRONT BODY PANEL ASSEMBLY
2006 400 MANUAL TRANSMISSION 4X4 VP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-750 | RACK,FRONT FRAME-ASSY | 1 | $314.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 2406-014 | BUSHING,RACK FRAME | 1 | $2.47 | |
| 5 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 6 | 0423-463 | SPACER,STEEL | 1 | $3.57 | |
| 7 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 8 | 2506-372 | FENDER,ASSEMBLY-FRONT (MARSH GREEN) | 1 | $969.95 | |
| 8 | 2506-300 | PANEL,FENDER FRONT-RED-ROUTED (VP) | 1 | $567.95 | |
| 9 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 10 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 11 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 12 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 13 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 14 | 1411-078 | REFLECTOR,FRONT-RH | 1 | $5.37 | |
| 14 | 1411-079 | REFLECTOR,FRONT-LH | 1 | $5.37 | |
| 15 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 16 | 1406-970 | COVER,STEERING POST-MARSH GREEN | 1 | $17.87 | |
| 16 | 1406-867 | R/B 1406-972 | 1 | $18.95 | |
| 17 | 1406-957 | COVER,FUEL TANK-MARSH GREEN-VP | 1 | $37.95 | |
| 17 | 1406-956 | COVER,FUEL TANK-RED-VP | 1 | $71.95 | |
| 18 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 19 | 0412-394 | SHIELD,HEAT | 1 | $3.16 | |
| 20 | 1406-906 | PANEL,SPLASH-RH | 1 | $405.95 | |
| 20 | 1406-907 | PANEL,SPLASH-LH | 1 | $114.95 | |
| 21 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 22 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 23 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 24 | 0470-404 | GROMMET,GAS VALVE KNOB | 1 | $2.95 |
