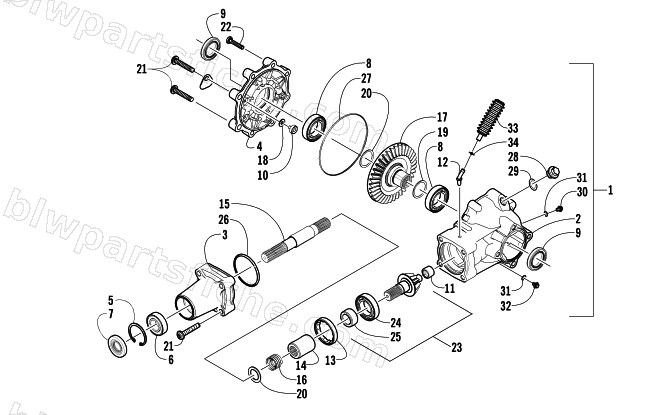

2006 Arctic Cat 400 MANUAL TRANSMISSION 4X4 VP — REAR DRIVE GEARCASE ASSEMBLY
2006 400 MANUAL TRANSMISSION 4X4 VP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-822 | GEARCASE,REAR(3.6)-ASSY | 1 | $1,605.95 | |
| 2 | 0502-088 | HOUSING,GEARCASE - MACH | 1 | $525.95 | |
| 3 | 0502-239 | HOUSING,PINION-MACH | 1 | $240.95 | |
| 4 | 0502-089 | COVER,GEARCASE - MACH | 1 | $99.95 | |
| 5 | 0402-321 | RING,RETAINING - INT-52 | 1 | $11.95 | |
| 6 | 0402-322 | BEARING,BALL (6205 2RS C3) | 1 | $27.95 | |
| 7 | 0402-323 | SEAL,25 X 52 X 8 DC | 1 | $13.73 | |
| 8 | 0402-324 | BEARING,BALL (6007 OPEN ) | 1 | $33.95 | |
| 9 | 0402-325 | SEAL,35 X 55 X 8 TC | 1 | $6.75 | |
| 10 | 0402-326 | BUTTON,THRUST | 1 | $6.34 | |
| 11 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 12 | 1402-103 | BARB, 45 DEGREE | 1 | $20.63 | |
| 13 | 0402-331 | COLLAR,LOCKING (M64-1.5 LH) | 1 | $49.95 | |
| 14 | 0402-335 | COLLAR,SHAFT-SPLINED | 1 | $48.95 | |
| 15 | 0402-851 | SHAFT, THRUST (SHORT) | 1 | $312.95 | |
| 16 | 0402-338 | SPRING,COMP - GROUND | 1 | $45.95 | |
| 17 | 0402-381 | GEAR,RING-RR (36T) | 1 | $352.95 | |
| 18 | 0402-429 | SHIM,6.3X18X1.3 | 1 | $10.97 | |
| 18 | 0402-430 | SHIM,6.3X18X1.4 | 1 | $12.35 | |
| 18 | 0402-431 | SHIM,6.3X18X1.5 | 1 | $12.35 | |
| 18 | 0402-432 | SHIM,6.3X18X1.6 | 1 | $10.97 | |
| 18 | 0402-433 | SHIM,6.3X18X1.7 | 1 | $12.35 | |
| 19 | 0402-434 | SHIM,35.7X43.8X1.3 | 1 | $8.95 | |
| 19 | 0402-435 | SHIM,35.7X43.8X1.4 | 1 | $10.95 | |
| 19 | 0402-436 | SHIM,35.7X43.8X1.5 | 1 | $10.95 | |
| 19 | 0402-437 | SHIM,35.7X43.8X1.6 | 1 | $12.95 | |
| 19 | 0402-438 | SHIM,6.3X18X1.7 | 1 | $12.35 | |
| 20 | 0423-111 | WASHER,MACHINE | 1 | $0.85 | |
| 21 | 0423-115 | SCREW,SELF TAP-TSPNH M10X1.5X55 | 1 | $1.78 | |
| 22 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 23 | 0502-783 | PINION-ASSY (10TOOTH) | 1 | $196.95 | |
| 24 | 0402-327 | BEARING,BALL (6305) | 1 | $26.95 | |
| 25 | 0402-336 | COLLAR, RETAINING | 1 | $50.95 | |
| 26 | 0423-148 | O-RING,75X 2MM | 1 | $1.95 | |
| 27 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 28 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 30 | 0402-334 | PLUG,DRAIN | 1 | $32.95 | |
| 32 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 33 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 34 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 |
